Rectifiers

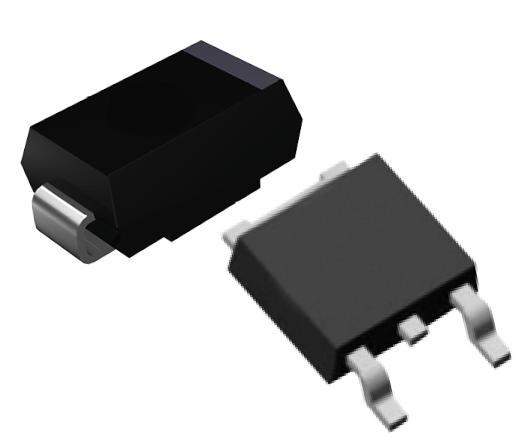

Schottky Rectifiers
| Part Number |
Data Sheet |
Package |
VRRM (V) |
IAV (A) |
IFSM (A) |
VF (V) |
IR (uA) |
|---|---|---|---|---|---|---|---|
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
||
Clear All Filters |
|||||||
| 1K2 |
|
R-1 | 20 | 1 | 40 | 0.55 | 0.500 |
| 1K3 |
|
R-1 | 30 | 1 | 40 | 0.55 | 0.500 |
| 1K4 |
|
R-1 | 40 | 1 | 40 | 0.55 | 0.500 |
| 1K5 |
|
R-1 | 50 | 1 | 40 | 0.7 | 0.500 |
| 1K6 |
|
R-1 | 60 | 1 | 40 | 0.7 | 0.500 |
| 1N17 |
|
R-1 | 20 | 1 | 20 | 0.45 | 1.000 |
| 1N18 |
|
R-1 | 30 | 1 | 20 | 0.55 | 1.000 |
| 1N19 |
|
R-1 | 40 | 1 | 20 | 0.6 | 1.000 |
| 1N5817 |
|
DO-204AL (DO-41) | 20 | 1 | 25 | 0.45 | 1.000 |
| 1N5818 |
|
DO-204AL (DO-41) | 30 | 1 | 25 | 0.55 | 1.000 |
| 1N5819 |
|
DO-204AL (DO-41) | 40 | 1 | 25 | 0.6 | 1.000 |
| 1N5820 |
|
DO-201AD | 20 | 3 | 80 | 0.475 | 2.000 |
| 1N5821 |
|
DO-201AD | 30 | 3 | 80 | 0.5 | 2.000 |
| 1N5822 |
|
DO-201AD | 40 | 3 | 80 | 0.525 | 2.000 |
| B5817W |
|
SOD-123 | 20 | 1 | 9 | 0.45 | 1.000 |
| B5818W |
|
SOD-123 | 30 | 1 | 9 | 0.55 | 1.000 |
| B5819W |
|
SOD-123 | 40 | 1 | 9 | 0.55 | 1.000 |
| FS12 |
|
eSGA (SOD-123FL) | 20 | 1 | 30 | 0.5 | 0.200 |
| FS12NS |
|
eSGA (SOD-123FL) | 20 | 1 | 25 | 0.52 | 0.500 |
| FS13 |
|
eSGA (SOD-123FL) | 30 | 1 | 30 | 0.5 | 0.200 |
| FS13NS |
|
eSGA (SOD-123FL) | 30 | 1 | 25 | 0.52 | 0.500 |
| FS14 |
|
eSGA (SOD-123FL) | 40 | 1 | 30 | 0.5 | 0.200 |
| FS14NS |
|
eSGA (SOD-123FL) | 40 | 1 | 25 | 0.52 | 0.500 |
| FS16 |
|
eSGA (SOD-123FL) | 60 | 1 | 30 | 0.7 | 0.200 |
| FS1B |
|
eSGA (SOD-123FL) | 100 | 1 | 30 | 0.81 | 0.150 |
| FS1B5H |
|
eSGA (SOD-123FL) | 150 | 1 | 30 | 0.9 | 0.200 |
| FS1BH |
|
eSGA (SOD-123FL) | 100 | 1 | 40 | 0.81 | 0.200 |
| FS1CH |
|
eSGA (SOD-123FL) | 200 | 1 | 30 | 0.9 | 0.200 |
| FS22N |
|
eSGA (SOD-123FL) | 20 | 2 | 50 | 0.43 | 0.500 |
| FS22NS |
|
eSGA (SOD-123FL) | 20 | 2 | 50 | 0.45 | 0.500 |
| FS24 |
|
eSGA (SOD-123FL) | 40 | 2 | 50 | 0.52 | 0.500 |
| FS24A |
|
eSGA (SOD-123FL) | 40 | 2 | 50 | 0.5 | 0.500 |
| FS24N |
|
eSGA (SOD-123FL) | 40 | 2 | 80 | 0.45 | 1.000 |
| FS26 |
|
eSGA (SOD-123FL) | 60 | 2 | 50 | 0.6 | 0.300 |
| FS2B5H |
|
eSGA (SOD-123FL) | 150 | 2 | 50 | 0.85 | 0.200 |
| FS2BH |
|
eSGA (SOD-123FL) | 100 | 2 | 50 | 0.85 | 0.200 |
| FS2CH |
|
eSGA (SOD-123FL) | 200 | 2 | 50 | 0.85 | 0.200 |
| FS32 |
|
eSGA (SOD-123FL) | 20 | 3 | 60 | 0.51 | 0.030 |
| FS33 |
|
eSGA (SOD-123FL) | 30 | 3 | 60 | 0.51 | 0.030 |
| FS34 |
|
eSGA (SOD-123FL) | 40 | 3 | 60 | 0.51 | 0.030 |
| FS345 |
|
eSGA (SOD-123FL) | 45 | 3 | 60 | 0.51 | 0.030 |
| FS36 |
|
eSGA (SOD-123FL) | 60 | 3 | 60 | 0.65 | 0.200 |
| FSL13 |
|
eSGA (SOD-123FL) | 30 | 1 | 40 | 0.42 | 0.500 |
| FSL14 |
|
eSGA (SOD-123FL) | 40 | 1 | 40 | 0.48 | 0.500 |
| FSL16 |
|
eSGA (SOD-123FL) | 60 | 1 | 40 | 0.48 | 0.200 |
| FSL23 |
|
eSGA (SOD-123FL) | 30 | 2 | 50 | 0.5 | 0.500 |
| FSL23S |
|
eSGA (SOD-123FL) | 30 | 2 | 50 | 0.43 | 0.500 |
| FSL24 |
|
eSGA (SOD-123FL) | 40 | 2 | 80 | 0.43 | 1.000 |
| FSL26 |
|
eSGA (SOD-123FL) | 60 | 2 | 50 | 0.5 | 1.000 |
| FSL32 |
|
eSGA (SOD-123FL) | 20 | 3 | 30 | 0.46 | 1.000 |
| FSL33 |
|
eSGA (SOD-123FL) | 30 | 3 | 30 | 0.46 | 1.000 |
| FSL34 |
|
eSGA (SOD-123FL) | 40 | 3 | 30 | 0.46 | 1.000 |
| GA0603B1040 |
|
DFN1608 | 40 | 1 | 30 | 0.53 | 0.050 |
| GDB5817WS |
|
SOD-323 | 20 | 1 | 25 | 0.45 | 1.000 |
| GDB5818WS |
|
SOD-323 | 30 | 1 | 25 | 0.55 | 1.000 |
| GDB5819HWS |
|
SOD-323 | 45 | 1 | 25 | 0.6 | 1.000 |
| GDB5819WS |
|
SOD-323 | 40 | 1 | 25 | 0.6 | 1.000 |
| GLSL52 |
|
eSGB (SMAF) | 20 | 5 | 80 | 0.39 | 0.200 |
| GLSL53 |
|
eSGB (SMAF) | 30 | 5 | 80 | 0.39 | 0.200 |
| GMBRD10150S |
|
TO-252 (DPAK) | 150 | 10 | 150 | 0.9 | 0.100 |
| GMBRD10200S |
|
TO-252 (DPAK) | 200 | 10 | 150 | 0.95 | 0.100 |
| GS12A30JCT |
|
TO-263 (D2PAK) | 30 | 12 | 150 | 0.47 | 1.000 |
| GS510BF |
|
SMBF | 100 | 5 | 150 | 0.85 | 0.100 |
| GS515BF |
|
SMBF | 150 | 5 | 150 | 0.9 | 0.100 |
| GS520BF |
|
SMBF | 200 | 5 | 150 | 0.9 | 0.100 |
| GS52BF |
|
SMBF | 20 | 5 | 150 | 0.55 | 0.500 |
| GS54BF |
|
SMBF | 40 | 5 | 150 | 0.55 | 0.500 |
| GS56BF |
|
SMBF | 60 | 5 | 150 | 0.7 | 0.500 |
| GS58BF |
|
SMBF | 80 | 5 | 150 | 0.85 | 0.100 |
| GSB2045 |
|
P600 (R-6) | 45 | 20 | 350 | 0.45 | 0.500 |
| GSB2B5 |
|
DO-204AC (DO-15) | 150 | 2 | 60 | 0.9 | 0.010 |
| GSB2C0 |
|
DO-204AC (DO-15) | 200 | 2 | 60 | 0.9 | 0.010 |
| GSBR20150CT |
|
TO-220-AB | 150 | 20 | 150 | 0.81 | 0.200 |
| GSBRB20150CT |
|
TO-263 (D2PAK) | 150 | 20 | 150 | 0.81 | 0.200 |
| GSBRD545S |
|
TO-252 (DPAK) | 45 | 5 | 100 | 0.5 | 0.200 |
| GSBRF20150CT |
|
ITO-220-AB | 150 | 20 | 150 | 0.81 | 0.200 |
| GSDS161B-40 |
|
DFN1608 | 40 | 2 | 15 | 0.56 | 0.020 |
| GSGC051BS |
|
TO-277 | 100 | 5 | 175 | 0.75 | 0.100 |
| GSGC0540S |
|
TO-277 | 40 | 5 | 175 | 0.5 | 0.300 |
| GSGC0560S |
|
TO-277 | 60 | 5 | 175 | 0.65 | 0.200 |
| GSGC0850S |
|
TO-277 | 50 | 8 | 200 | 0.48 | 0.500 |
| GSGC1020S |
|
TO-277 | 20 | 10 | 280 | 0.45 | 0.300 |
| GSGC1045S |
|
TO-277 | 45 | 10 | 175 | 0.35 | 0.300 |
| GSGC1060S |
|
TO-277 | 60 | 10 | 280 | 0.5 | 0.300 |
| GSGC10CS |
|
TO-277 | 200 | 10 | 175 | 0.85 | 0.050 |
| GSGC121B2S |
|
TO-277 | 120 | 12 | 220 | 0.75 | 0.200 |
| GSGC12BS |
|
TO-277 | 100 | 12 | 240 | 0.7 | 0.250 |
| GSGC1508S |
|
TO-277 | 80 | 15 | 250 | 0.65 | 0.100 |
| GSGC151BS |
|
TO-277 | 100 | 15 | 250 | 0.65 | 0.100 |
| GSGC1545S |
|
TO-277 | 45 | 15 | 300 | 0.47 | 0.200 |
| GSGC1545SA |
|
TO-277 | 45 | 15 | 300 | 0.49 | 0.200 |
| GSGC1550S |
|
TO-277 | 50 | 15 | 300 | 0.55 | 0.200 |
| GSGC1560S |
|
TO-277 | 60 | 15 | 300 | 0.55 | 0.200 |
| GSGC201B2S |
|
TO-277 | 120 | 20 | 250 | 0.79 | 0.200 |
| GSGC201BS |
|
TO-277 | 100 | 20 | 250 | 0.75 | 0.250 |
| GSGC2050S |
|
TO-277 | 50 | 20 | 300 | 0.7 | 0.500 |
| GSGCP2550L |
|
TO-277 | 50 | 25 | 350 | 0.32 | 0.300 |
| GSGP011BSL |
|
eSGP (SOD-323F) | 100 | 1 | 30 | 0.8 | 0.020 |
| GSGP0120SD |
|
eSGP (SOD-323F) | 20 | 1 | 25 | 0.45 | 0.100 |
| GSGP0120SL |
|
eSGP (SOD-323F) | 20 | 1 | 30 | 0.45 | 0.080 |
| GSGP0120SL1 |
|
eSGP (SOD-323F) | 20 | 1 | 9 | 0.5 | 0.200 |
| GSGP0130SL1 |
|
eSGP (SOD-323F) | 30 | 1 | 9 | 0.5 | 0.200 |
| GSGP0140SD |
|
eSGP (SOD-323F) | 40 | 1 | 25 | 0.55 | 0.100 |
| GSGP0140SL |
|
eSGP (SOD-323F) | 40 | 1 | 30 | 0.58 | 0.200 |
| GSGP0140SL1 |
|
eSGP (SOD-323F) | 40 | 1 | 9 | 0.5 | 0.200 |
| GSGP0160SD |
|
eSGP (SOD-323F) | 60 | 1 | 25 | 0.7 | 0.100 |
| GSGP0160SL |
|
eSGP (SOD-323F) | 60 | 1 | 30 | 0.7 | 0.200 |
| GSGP0230S |
|
eSGP (SOD-323F) | 30 | 2 | 10 | 0.62 | 1.000 |
| GSGP0230SD |
|
eSGP (SOD-323F) | 30 | 2 | 40 | 0.55 | 0.100 |
| GSGP0240S |
|
eSGP (SOD-323F) | 40 | 2 | 10 | 0.62 | 1.000 |
| GSGP0240SD |
|
eSGP (SOD-323F) | 40 | 2 | 40 | 0.55 | 0.100 |
| GSGP0260SD |
|
eSGP (SOD-323F) | 60 | 2 | 40 | 0.7 | 0.200 |
| GSH16 |
|
eSGA (SOD-123FL) | 60 | 1 | 25 | 0.7 | 1.000 |
| GSHBR4060CT |
|
TO-220-AB | 60 | 40 | 200 | 0.59 | 0.200 |
| GSHBRB4060CT |
|
TO-263 (D2PAK) | 60 | 40 | 200 | 0.59 | 0.200 |
| GSHBRF4060CT |
|
ITO-220-AB | 60 | 40 | 200 | 0.59 | 0.200 |
| GSK210BF |
|
SMBF | 100 | 2 | 50 | 0.85 | 0.300 |
| GSK212BF |
|
SMBF | 120 | 2 | 50 | 0.85 | 0.300 |
| GSK215BF |
|
SMBF | 150 | 2 | 50 | 0.95 | 0.300 |
| GSK220BF |
|
SMBF | 200 | 2 | 50 | 0.95 | 0.300 |
| GSK22BF |
|
SMBF | 20 | 2 | 50 | 0.55 | 0.500 |
| GSK24BF |
|
SMBF | 40 | 2 | 50 | 0.55 | 0.500 |
| GSK26BF |
|
SMBF | 60 | 2 | 50 | 0.7 | 0.500 |
| GSK28BF |
|
SMBF | 80 | 2 | 50 | 0.85 | 0.300 |
| GSK745B |
|
DO-214AA (SMB) | 45 | 7 | 200 | 0.57 | 0.100 |
| GSKP0230S |
|
DFN1608-2C | 30 | 1 | 28 | 0.43 | 0.050 |
| GSMBR40100CT |
|
TO-220-AB | 100 | 40 | 200 | 0.76 | 0.200 |
| GSMBR40150CT |
|
TO-220-AB | 150 | 40 | 300 | 0.85 | 0.100 |
| GSMBRB30100CT |
|
TO-263 (D2PAK) | 100 | 30 | 200 | 0.85 | 0.200 |
| GSMBRBL3045CT |
|
TO-263 (D2PAK) | 45 | 30 | 250 | 0.55 | 0.200 |
| GSMBRD1045S |
|
TO-252 (DPAK) | 45 | 10 | 150 | 0.7 | 0.100 |
| GSMBRD20100 |
|
TO-252 (DPAK) | 100 | 20 | 130 | 0.83 | 0.100 |
| GSMBRD20150 |
|
TO-252 (DPAK) | 150 | 20 | 130 | 0.87 | 0.100 |
| GSMBRD20200 |
|
TO-252 (DPAK) | 200 | 20 | 130 | 0.9 | 0.100 |
| GSMBRP1260 |
|
POWER QFN5X6 | 60 | 12 | 160 | 0.4 | 0.150 |
| GSMBRTL20120 |
|
TO-262L | 120 | 20 | 120 | 0.87 | 0.100 |
| GSMUR3020CT |
|
TO-220-AB | 200 | 30 | 220 | 1.05 | 0.005 |
| GSMUR3040CT |
|
TO-220-AB | 400 | 30 | 220 | 1.3 | 0.005 |
| GSMUR3060CT |
|
TO-220-AB | 600 | 30 | 220 | 1.7 | 0.005 |
| GSP1045L |
|
TO-277 | 45 | 10 | 220 | 0.47 | 0.200 |
| GSPS1100 |
|
iSGA (SOD-123HS) | 100 | 1 | 30 | 0.8 | 0.001 |
| GSPS1150 |
|
iSGA (SOD-123HS) | 150 | 1 | 40 | 0.85 | 0.002 |
| GSPS1200 |
|
iSGA (SOD-123HS) | 200 | 1 | 40 | 0.85 | 0.002 |
| GSPS13 |
|
iSGA (SOD-123HS) | 30 | 1 | 30 | 0.5 | 0.150 |
| GSPS17 |
|
iSGA (SOD-123HS) | 70 | 1 | 30 | 0.8 | 0.001 |
| GSPS18 |
|
iSGA (SOD-123HS) | 80 | 1 | 30 | 0.8 | 0.001 |
| GSPS19 |
|
iSGA (SOD-123HS) | 90 | 1 | 30 | 0.8 | 0.001 |
| GSPS1B5H |
|
iSGA (SOD-123HS) | 150 | 1 | 40 | 0.85 | 0.002 |
| GSPS1CH |
|
iSGA (SOD-123HS) | 200 | 1 | 40 | 0.85 | 0.002 |
| GSPS2100 |
|
iSGA (SOD-123HS) | 100 | 2 | 50 | 0.8 | 0.005 |
| GSPS22 |
|
iSGA (SOD-123HS) | 20 | 2 | 50 | 0.51 | 0.050 |
| GSPS23 |
|
iSGA (SOD-123HS) | 30 | 2 | 50 | 0.51 | 0.050 |
| GSPS24 |
|
iSGA (SOD-123HS) | 40 | 2 | 50 | 0.51 | 0.050 |
| GSPS3100 |
|
iSGA (SOD-123HS) | 100 | 3 | 100 | 0.8 | 0.005 |
| GSPS32 |
|
iSGA (SOD-123HS) | 20 | 3 | 100 | 0.51 | 0.050 |
| GSPS33 |
|
iSGA (SOD-123HS) | 30 | 3 | 100 | 0.51 | 0.050 |
| GSPS34 |
|
iSGA (SOD-123HS) | 40 | 3 | 100 | 0.51 | 0.050 |
| GSPS345 |
|
iSGA (SOD-123HS) | 45 | 3 | 100 | 0.51 | 0.050 |
| GSPS35 |
|
iSGA (SOD-123HS) | 50 | 3 | 100 | 0.65 | 0.050 |
| GSPS36 |
|
iSGA (SOD-123HS) | 60 | 3 | 100 | 0.65 | 0.050 |
| GSPSL13 |
|
iSGA (SOD-123HS) | 30 | 1 | 40 | 0.35 | 0.200 |
| GSPSL14 |
|
iSGA (SOD-123HS) | 40 | 1 | 40 | 0.45 | 0.200 |
| GSPSL24 |
|
iSGA (SOD-123HS) | 40 | 2 | 50 | 0.4 | 0.200 |
| GSPSL26 |
|
iSGA (SOD-123HS) | 60 | 2 | 50 | 0.45 | 0.200 |
| GSPSL32 |
|
iSGA (SOD-123HS) | 20 | 3 | 80 | 0.45 | 0.150 |
| GSPSL33 |
|
iSGA (SOD-123HS) | 30 | 3 | 80 | 0.45 | 0.150 |
| GSPSL34 |
|
iSGA (SOD-123HS) | 40 | 3 | 80 | 0.45 | 0.150 |
| GSR10100D |
|
TO-263 (D2PAK) | 100 | 10 | 150 | 0.85 | 0.015 |
| GSR10150D |
|
TO-263 (D2PAK) | 150 | 10 | 150 | 0.9 | 0.015 |
| GSR10200D |
|
TO-263 (D2PAK) | 200 | 10 | 150 | 0.95 | 0.015 |
| GSR1040D |
|
TO-263 (D2PAK) | 40 | 10 | 150 | 0.6 | 0.100 |
| GSR1045D |
|
TO-263 (D2PAK) | 45 | 10 | 150 | 0.6 | 0.100 |
| GSR1060D |
|
TO-263 (D2PAK) | 60 | 10 | 150 | 0.75 | 0.100 |
| GSR20150D1 |
|
TO-263 (D2PAK) | 150 | 20 | 200 | 0.9 | 0.020 |
| GSR30100LD1 |
|
TO-263 (D2PAK) | 100 | 30 | 300 | 0.73 | 0.050 |
| GSR40300CT |
|
TO-220-AB | 300 | 40 | 350 | 0.975 | 0.005 |
| GSR40300D1 |
|
TO-263 (D2PAK) | 300 | 40 | 350 | 0.975 | 0.005 |
| GSR40300PT |
|
TO-247AB | 300 | 40 | 300 | 0.95 | 0.100 |
| GSR4040D3 |
|
TO-263 (D2PAK) | 40 | 40 | 300 | 0.6 | 0.200 |
| GSRF40300CT |
|
ITO-220-AB | 300 | 40 | 350 | 0.975 | 0.005 |
| GSS1010LBT |
|
SMBF | 100 | 10 | 150 | 0.7 | 0.100 |
| GSTP0110S |
|
iSGP (SOD-323HS) | 100 | 1 | 25 | 0.8 | 0.020 |
| GSTP0120S |
|
iSGP (SOD-323HS) | 20 | 1 | 25 | 0.5 | 0.020 |
| GSTP0130S |
|
iSGP (SOD-323HS) | 30 | 1 | 25 | 0.5 | 0.020 |
| GSTP0140S |
|
iSGP (SOD-323HS) | 40 | 1 | 25 | 0.5 | 0.020 |
| GSTP0160S |
|
iSGP (SOD-323HS) | 60 | 1 | 25 | 0.7 | 0.020 |
| GSTP0220S |
|
iSGP (SOD-323HS) | 20 | 2 | 30 | 0.6 | 0.250 |
| GSTP0230S |
|
iSGP (SOD-323HS) | 30 | 2 | 30 | 0.6 | 0.250 |
| GSTP0240S |
|
iSGP (SOD-323HS) | 40 | 2 | 30 | 0.6 | 0.250 |
| GSTPD5200S |
|
SOD-323HE | 200 | 0.5 | 15 | 0.95 | 0.200 |
| LS12 |
|
eSGB (SMAF) | 20 | 1 | 30 | 0.5 | 0.300 |
| LS14 |
|
eSGB (SMAF) | 40 | 1 | 30 | 0.5 | 0.300 |
| LS16 |
|
eSGB (SMAF) | 60 | 1 | 30 | 0.7 | 0.300 |
| LS18 |
|
eSGB (SMAF) | 80 | 1 | 30 | 0.81 | 0.300 |
| LS19 |
|
eSGB (SMAF) | 90 | 1 | 30 | 0.81 | 0.300 |
| LS1B |
|
eSGB (SMAF) | 100 | 1 | 30 | 0.81 | 0.300 |
| LS1B5H |
|
eSGB (SMAF) | 150 | 1 | 30 | 0.9 | 0.300 |
| LS1BH |
|
eSGB (SMAF) | 100 | 1 | 30 | 0.9 | 0.300 |
| LS1CH |
|
eSGB (SMAF) | 200 | 1 | 30 | 0.9 | 0.300 |
| LS22 |
|
eSGB (SMAF) | 20 | 2 | 50 | 0.55 | 0.500 |
| LS23 |
|
eSGB (SMAF) | 30 | 2 | 50 | 0.55 | 0.500 |
| LS24 |
|
eSGB (SMAF) | 40 | 2 | 50 | 0.55 | 0.500 |
| LS24A |
|
eSGB (SMAF) | 40 | 2 | 50 | 0.5 | 0.500 |
| LS25 |
|
eSGB (SMAF) | 50 | 2 | 50 | 0.7 | 0.500 |
| LS26 |
|
eSGB (SMAF) | 60 | 2 | 50 | 0.7 | 0.500 |
| LS27 |
|
eSGB (SMAF) | 70 | 2 | 50 | 0.81 | 0.500 |
| LS28 |
|
eSGB (SMAF) | 80 | 2 | 50 | 0.81 | 0.500 |
| LS29 |
|
eSGB (SMAF) | 90 | 2 | 50 | 0.81 | 0.500 |
| LS2B |
|
eSGB (SMAF) | 100 | 2 | 50 | 0.81 | 0.500 |
| LS2B5H |
|
eSGB (SMAF) | 150 | 2 | 50 | 0.85 | 0.200 |
| LS2BH |
|
eSGB (SMAF) | 100 | 2 | 50 | 0.85 | 0.200 |
| LS2CH |
|
eSGB (SMAF) | 200 | 2 | 50 | 0.85 | 0.200 |
| LS32 |
|
eSGB (SMAF) | 20 | 3 | 100 | 0.55 | 0.500 |
| LS33 |
|
eSGB (SMAF) | 30 | 3 | 100 | 0.55 | 0.500 |
| LS34 |
|
eSGB (SMAF) | 40 | 3 | 100 | 0.55 | 0.500 |
| LS345AS |
|
eSGB (SMAF) | 45 | 3 | 60 | 0.45 | 1.000 |
| LS34AS |
|
eSGB (SMAF) | 40 | 3 | 60 | 0.45 | 1.000 |
| LS35 |
|
eSGB (SMAF) | 50 | 3 | 100 | 0.7 | 0.500 |
| LS36 |
|
eSGB (SMAF) | 60 | 3 | 100 | 0.7 | 0.500 |
| LS36A |
|
eSGB (SMAF) | 60 | 3 | 100 | 0.75 | 0.300 |
| LS37 |
|
eSGB (SMAF) | 70 | 3 | 100 | 0.85 | 0.500 |
| LS38 |
|
eSGB (SMAF) | 80 | 3 | 100 | 0.85 | 0.500 |
| LS39 |
|
eSGB (SMAF) | 90 | 3 | 100 | 0.85 | 0.500 |
| LS3B |
|
eSGB (SMAF) | 100 | 3 | 100 | 0.85 | 0.500 |
| LS3C0 |
|
eSGB (SMAF) | 200 | 3 | 100 | 0.87 | 0.050 |
| LS54 |
|
eSGB (SMAF) | 40 | 5 | 150 | 0.5 | 0.500 |
| LS545 |
|
eSGB (SMAF) | 45 | 5 | 150 | 0.46 | 0.200 |
| LS56 |
|
eSGB (SMAF) | 60 | 5 | 150 | 0.5 | 0.500 |
| LS565 |
|
eSGB (SMAF) | 65 | 5 | 150 | 0.5 | 0.500 |
| LS565T |
|
eSGB (SMAF) | 65 | 5 | 110 | 0.62 | 0.350 |
| LS56T2 |
|
eSGB (SMAF) | 60 | 5 | 200 | 0.52 | 0.025 |
| LS5B0 |
|
eSGB (SMAF) | 100 | 5 | 150 | 0.5 | 1.000 |
| LS5BH |
|
eSGB (SMAF) | 100 | 5 | 150 | 0.85 | 0.500 |
| LSL12 |
|
eSGB (SMAF) | 20 | 1 | 30 | 0.45 | 0.500 |
| LSL13 |
|
eSGB (SMAF) | 30 | 1 | 30 | 0.45 | 0.500 |
| LSL14 |
|
eSGB (SMAF) | 40 | 1 | 30 | 0.45 | 0.500 |
| LSL15 |
|
eSGB (SMAF) | 50 | 1 | 30 | 0.65 | 0.500 |
| LSL16 |
|
eSGB (SMAF) | 60 | 1 | 30 | 0.65 | 0.500 |
| LSL18 |
|
eSGB (SMAF) | 80 | 1 | 30 | 0.8 | 0.500 |
| LSL1B |
|
eSGB (SMAF) | 100 | 1 | 30 | 0.8 | 0.500 |
| LSL22 |
|
eSGB (SMAF) | 20 | 2 | 50 | 0.43 | 0.500 |
| LSL23 |
|
eSGB (SMAF) | 30 | 2 | 50 | 0.43 | 0.500 |
| LSL24 |
|
eSGB (SMAF) | 40 | 2 | 50 | 0.43 | 0.500 |
| LSL32A |
|
eSGB (SMAF) | 20 | 3 | 50 | 0.45 | 0.500 |
| LSL33A |
|
eSGB (SMAF) | 30 | 3 | 50 | 0.45 | 0.500 |
| LSL34 |
|
eSGB (SMAF) | 40 | 3 | 50 | 0.45 | 0.500 |
| LSL345 |
|
eSGB (SMAF) | 45 | 3 | 50 | 0.45 | 0.500 |
| LSL34A |
|
eSGB (SMAF) | 40 | 3 | 50 | 0.45 | 0.500 |
| LSL36 |
|
eSGB (SMAF) | 60 | 3 | 100 | 0.55 | 5.000 |
| LSL54 |
|
eSGB (SMAF) | 40 | 5 | 150 | 0.5 | 0.150 |
| LSL545 |
|
eSGB (SMAF) | 45 | 5 | 150 | 0.5 | 0.150 |
| LSL56 |
|
eSGB (SMAF) | 60 | 5 | 80 | 0.5 | 0.500 |
| MBR10100CT |
|
TO-220-AB | 100 | 10 | 120 | 0.85 | 0.200 |
| MBR10150CT |
|
TO-220-AB | 150 | 10 | 150 | 0.92 | 0.200 |
| MBR10200CT |
|
TO-220-AB | 200 | 10 | 150 | 0.95 | 0.200 |
| MBR1045 |
|
TO-220-AC | 45 | 10 | 150 | 0.57 | 0.200 |
| MBR1045CT |
|
TO-220-AB | 45 | 10 | 120 | 0.55 | 0.200 |
| MBR1060CT |
|
TO-220-AB | 60 | 10 | 120 | 0.8 | 0.200 |
| MBR1545 |
|
TO-220-AC | 45 | 15 | 200 | 0.6 | 0.800 |
| MBR1545CT |
|
TO-220-AB | 45 | 15 | 120 | 0.7 | 0.100 |
| MBR1645 |
|
TO-220-AC | 45 | 16 | 150 | 0.6 | 0.200 |
| MBR20100CT |
|
TO-220-AB | 100 | 20 | 150 | 0.83 | 0.200 |
| MBR20150CT |
|
TO-220-AB | 150 | 20 | 150 | 0.92 | 0.200 |
| MBR20200CT |
|
TO-220-AB | 200 | 20 | 150 | 0.95 | 0.200 |
| MBR2045CT |
|
TO-220-AB | 45 | 20 | 150 | 0.7 | 0.200 |
| MBR2060CT |
|
TO-220-AB | 60 | 20 | 150 | 0.8 | 0.200 |
| MBR30100CT |
|
TO-220-AB | 100 | 30 | 200 | 0.85 | 0.200 |
| MBR30150CT |
|
TO-220-AB | 150 | 30 | 200 | 0.9 | 0.200 |
| MBR30200CT |
|
TO-220-AB | 200 | 30 | 180 | 1.2 | 0.200 |
| MBR3045CT |
|
TO-220-AB | 45 | 30 | 200 | 0.71 | 0.200 |
| MBR3060CT |
|
TO-220-AB | 60 | 30 | 200 | 0.78 | 0.200 |
| MBRB10100CT |
|
TO-263 (D2PAK) | 100 | 10 | 125 | 0.85 | 0.200 |
| MBRB10150CT |
|
TO-263 (D2PAK) | 150 | 10 | 150 | 0.92 | 0.200 |
| MBRB10200CT |
|
TO-263 (D2PAK) | 200 | 10 | 150 | 0.95 | 0.200 |
| MBRB1045 |
|
TO-263 (D2PAK) | 45 | 10 | 150 | 0.57 | 0.200 |
| MBRB1045CT |
|
TO-263 (D2PAK) | 45 | 10 | 120 | 0.55 | 0.200 |
| MBRB1060CT |
|
TO-263 (D2PAK) | 60 | 10 | 120 | 0.8 | 0.200 |
| MBRB20100CT |
|
TO-263 (D2PAK) | 100 | 20 | 150 | 0.83 | 0.200 |
| MBRB20150CT |
|
TO-263 (D2PAK) | 150 | 20 | 150 | 0.92 | 0.200 |
| MBRB20200CT-1 |
|
TO-263 (D2PAK) | 200 | 20 | 200 | 0.92 | 0.050 |
| MBRB20300S |
|
TO-263 (D2PAK) | 300 | 20 | 180 | 0.88 | 0.100 |
| MBRB2045CT |
|
TO-263 (D2PAK) | 45 | 20 | 150 | 0.7 | 0.200 |
| MBRB2060CT |
|
TO-263 (D2PAK) | 60 | 20 | 150 | 0.8 | 0.200 |
| MBRB30150CT |
|
TO-263 (D2PAK) | 150 | 30 | 200 | 0.9 | 0.200 |
| MBRB3060CT |
|
TO-263 (D2PAK) | 60 | 30 | 200 | 0.78 | 0.200 |
| MBRD10100CT |
|
TO-252 (DPAK) | 100 | 10 | 120 | 0.85 | 0.200 |
| MBRD10200CT |
|
TO-252 (DPAK) | 200 | 10 | 150 | 0.95 | 0.200 |
| MBRD1045CT |
|
TO-252 (DPAK) | 45 | 10 | 120 | 0.55 | 0.200 |
| MBRD1545CT |
|
TO-252 (DPAK) | 45 | 15 | 125 | 0.52 | 0.200 |
| MBRD20100CT |
|
TO-252 (DPAK) | 100 | 20 | 150 | 0.84 | 0.200 |
| MBRD20150CT |
|
TO-252 (DPAK) | 150 | 20 | 150 | 0.92 | 0.050 |
| MBRD2060CT |
|
TO-252 (DPAK) | 60 | 20 | 150 | 0.7 | 0.200 |
| MBRD560S |
|
TO-252 (DPAK) | 60 | 5 | 100 | 0.7 | 0.200 |
| MBRD6100CT |
|
TO-252 (DPAK) | 100 | 6 | 100 | 0.76 | 0.050 |
| MBRF10100CT |
|
ITO-220-AB | 100 | 10 | 120 | 0.85 | 0.200 |
| MBRF10150CT |
|
ITO-220-AB | 150 | 10 | 150 | 0.92 | 0.200 |
| MBRF10200CT |
|
ITO-220-AB | 200 | 10 | 150 | 0.95 | 0.200 |
| MBRF1045 |
|
ITO-220-AC | 45 | 10 | 150 | 0.57 | 0.200 |
| MBRF1045CT |
|
ITO-220-AB | 45 | 10 | 120 | 0.55 | 0.200 |
| MBRF1060CT |
|
ITO-220-AB | 60 | 10 | 120 | 0.8 | 0.200 |
| MBRF1545 |
|
ITO-220-AC | 45 | 15 | 200 | 0.6 | 0.800 |
| MBRF1645 |
|
ITO-220-AC | 45 | 16 | 150 | 0.6 | 0.200 |
| MBRF20100CT |
|
ITO-220-AB | 100 | 20 | 150 | 0.83 | 0.200 |
| MBRF20150CT |
|
ITO-220-AB | 150 | 20 | 150 | 0.92 | 0.200 |
| MBRF20200CT |
|
ITO-220-AB | 200 | 20 | 150 | 0.95 | 0.200 |
| MBRF2045CT |
|
ITO-220-AB | 45 | 20 | 150 | 0.7 | 0.200 |
| MBRF2060CT |
|
ITO-220-AB | 60 | 20 | 150 | 0.8 | 0.200 |
| MBRF30100CT |
|
ITO-220-AB | 100 | 30 | 200 | 0.85 | 0.200 |
| MBRF30150CT |
|
ITO-220-AB | 150 | 30 | 200 | 0.9 | 0.200 |
| MBRF3045CT |
|
ITO-220-AB | 45 | 30 | 200 | 0.71 | 0.200 |
| MBRF3060CT |
|
ITO-220-AB | 60 | 30 | 200 | 0.78 | 0.200 |
| MBRFH10200CT |
|
ITO-220-AB | 200 | 10 | 150 | 0.82 | 0.200 |
| MBRFH20100CT |
|
ITO-220-AB | 100 | 20 | 150 | 0.72 | 0.200 |
| MBRFH20100S |
|
ITO-220-AB | 100 | 20 | 150 | 0.7 | 0.500 |
| MBRFH20150S |
|
ITO-220-AB | 150 | 20 | 150 | 0.83 | 0.500 |
| MBRFH3045CT |
|
ITO-220-AB | 45 | 30 | 200 | 0.55 | 0.200 |
| MBRH10200CT |
|
TO-220-AB | 200 | 10 | 150 | 0.82 | 0.200 |
| MBRH20100CT |
|
TO-220-AB | 100 | 20 | 150 | 0.72 | 0.200 |
| MBRH20100S |
|
TO-220-AB | 100 | 20 | 150 | 0.7 | 0.500 |
| MBRH20150S |
|
TO-220-AB | 150 | 20 | 150 | 0.83 | 0.500 |
| MBRH3045CT |
|
TO-220-AB | 45 | 30 | 200 | 0.55 | 0.200 |
| MBRP10100 |
|
POWER QFN5X6 | 100 | 10 | 150 | 0.83 | 0.200 |
| MBRP10100CT |
|
POWER QFN5X6 | 100 | 10 | 120 | 0.85 | 0.200 |
| MBRP10200 |
|
POWER QFN5X6 | 200 | 10 | 150 | 0.9 | 0.200 |
| MBRP1045 |
|
POWER QFN5X6 | 45 | 10 | 200 | 0.47 | 0.300 |
| MBRP1060 |
|
POWER QFN5X6 | 60 | 10 | 200 | 0.67 | 0.200 |
| MBRP3060 |
|
POWER QFN5X6 | 60 | 30 | 200 | 0.59 | 0.500 |
| MBRP3100 |
|
POWER QFN5X6 | 100 | 3 | 70 | 0.85 | 0.200 |
| MBRP3150 |
|
POWER QFN5X6 | 150 | 3 | 70 | 0.88 | 0.200 |
| MBRP3200 |
|
POWER QFN5X6 | 200 | 3 | 70 | 0.92 | 0.200 |
| SB120 |
|
DO-204AL (DO-41) | 20 | 1 | 40 | 0.5 | 0.500 |
| SB120S |
|
A-405 | 20 | 1 | 40 | 0.5 | 0.500 |
| SB130 |
|
DO-204AL (DO-41) | 30 | 1 | 40 | 0.5 | 0.500 |
| SB130S |
|
A-405 | 30 | 1 | 40 | 0.5 | 0.500 |
| SB140 |
|
DO-204AL (DO-41) | 40 | 1 | 40 | 0.5 | 0.500 |
| SB140S |
|
A-405 | 40 | 1 | 40 | 0.5 | 0.500 |
| SB150 |
|
DO-204AL (DO-41) | 50 | 1 | 40 | 0.7 | 0.500 |
| SB150S |
|
A-405 | 50 | 1 | 40 | 0.7 | 0.500 |
| SB160 |
|
DO-204AL (DO-41) | 60 | 1 | 40 | 0.7 | 0.500 |
| SB160S |
|
A-405 | 60 | 1 | 40 | 0.7 | 0.500 |
| SB170 |
|
DO-204AL (DO-41) | 70 | 1 | 30 | 0.79 | 0.500 |
| SB170S |
|
A-405 | 70 | 1 | 30 | 0.79 | 0.500 |
| SB180 |
|
DO-204AL (DO-41) | 80 | 1 | 30 | 0.79 | 0.500 |
| SB180S |
|
A-405 | 80 | 1 | 30 | 0.79 | 0.500 |
| SB190 |
|
DO-204AL (DO-41) | 90 | 1 | 30 | 0.79 | 0.500 |
| SB190S |
|
A-405 | 90 | 1 | 30 | 0.79 | 0.500 |
| SB1B0 |
|
DO-204AL (DO-41) | 100 | 1 | 30 | 0.79 | 0.500 |
| SB1B0S |
|
A-405 | 100 | 1 | 30 | 0.79 | 0.500 |
| SB220 |
|
DO-204AC (DO-15) | 20 | 2 | 60 | 0.55 | 0.500 |
| SB230 |
|
DO-204AC (DO-15) | 30 | 2 | 60 | 0.55 | 0.500 |
| SB240 |
|
DO-204AC (DO-15) | 40 | 2 | 60 | 0.55 | 0.500 |
| SB250 |
|
DO-204AC (DO-15) | 50 | 2 | 60 | 0.7 | 0.500 |
| SB260 |
|
DO-204AC (DO-15) | 60 | 2 | 60 | 0.7 | 0.500 |
| SB270 |
|
DO-204AC (DO-15) | 70 | 2 | 60 | 0.79 | 0.500 |
| SB280 |
|
DO-204AC (DO-15) | 80 | 2 | 60 | 0.79 | 0.500 |
| SB290 |
|
DO-204AC (DO-15) | 90 | 2 | 60 | 0.79 | 0.500 |
| SB2B0 |
|
DO-204AC (DO-15) | 100 | 2 | 60 | 0.79 | 0.500 |
| SB320 |
|
DO-201AD | 20 | 3 | 100 | 0.5 | 0.500 |
| SB330 |
|
DO-201AD | 30 | 3 | 100 | 0.5 | 0.500 |
| SB340 |
|
DO-201AD | 40 | 3 | 100 | 0.5 | 0.500 |
| SB350 |
|
DO-201AD | 50 | 3 | 100 | 0.74 | 0.500 |
| SB360 |
|
DO-201AD | 60 | 3 | 100 | 0.74 | 0.500 |
| SB370 |
|
DO-201AD | 70 | 3 | 100 | 0.79 | 0.500 |
| SB380 |
|
DO-201AD | 80 | 3 | 100 | 0.79 | 0.500 |
| SB390 |
|
DO-201AD | 90 | 3 | 100 | 0.79 | 0.500 |
| SB3B0 |
|
DO-201AD | 100 | 3 | 100 | 0.79 | 0.500 |
| SB520 |
|
DO-201AD | 20 | 5 | 150 | 0.55 | 0.500 |
| SB530 |
|
DO-201AD | 30 | 5 | 150 | 0.55 | 0.500 |
| SB540 |
|
DO-201AD | 40 | 5 | 150 | 0.55 | 0.500 |
| SB550 |
|
DO-201AD | 50 | 5 | 150 | 0.67 | 0.500 |
| SB560 |
|
DO-201AD | 60 | 5 | 150 | 0.67 | 0.500 |
| SB570 |
|
DO-201AD | 70 | 5 | 150 | 0.79 | 0.500 |
| SB580 |
|
DO-201AD | 80 | 5 | 150 | 0.79 | 0.500 |
| SB590 |
|
DO-201AD | 90 | 5 | 150 | 0.79 | 0.500 |
| SB5B0 |
|
DO-201AD | 100 | 5 | 150 | 0.79 | 0.500 |
| SB945 |
|
P600 (R-6) | 45 | 9 | 150 | 0.63 | 0.500 |
| SBR20100CT |
|
TO-220-AB | 100 | 20 | 150 | 0.69 | 0.200 |
| SBR20300S |
|
TO-220-AB | 300 | 20 | 150 | 0.86 | 0.200 |
| SBR30200CT |
|
TO-220-AB | 200 | 30 | 200 | 0.98 | 0.500 |
| SBR30300CT |
|
TO-220-AB | 300 | 30 | 200 | 0.96 | 0.100 |
| SBR40100CT |
|
TO-220-AB | 100 | 40 | 200 | 0.66 | 0.200 |
| SBRB20300S |
|
TO-263 (D2PAK) | 300 | 20 | 150 | 0.86 | 0.200 |
| SBRB30200CT |
|
TO-263 (D2PAK) | 200 | 30 | 200 | 0.98 | 0.500 |
| SBRB30300CT |
|
TO-263 (D2PAK) | 300 | 30 | 200 | 0.96 | 0.100 |
| SBRB40100CT |
|
TO-263 (D2PAK) | 100 | 40 | 200 | 0.66 | 0.200 |
| SBRF20300S |
|
ITO-220-AB | 300 | 20 | 150 | 0.86 | 0.200 |
| SBRF30200CT |
|
ITO-220-AB | 200 | 30 | 200 | 0.98 | 0.500 |
| SBRF30300CT |
|
ITO-220-AB | 300 | 30 | 200 | 0.96 | 0.100 |
| SBRF40100CT |
|
ITO-220-AB | 100 | 40 | 200 | 0.66 | 0.200 |
| SD945 |
|
DO-201AD | 45 | 9 | 150 | 0.63 | 0.500 |
| SGC101BSA |
|
TO-277 | 100 | 10 | 220 | 0.65 | 0.250 |
| SGL1A |
|
DO-213AA | 20 | 1 | 27 | 0.5 | 0.500 |
| SGL1B |
|
DO-213AA | 30 | 1 | 27 | 0.5 | 0.500 |
| SGL1D |
|
DO-213AA | 40 | 1 | 27 | 0.5 | 0.500 |
| SGL1G |
|
DO-213AA | 50 | 1 | 27 | 0.5 | 0.500 |
| SGL1J |
|
DO-213AA | 60 | 1 | 27 | 0.8 | 0.500 |
| SGL1K |
|
DO-213AA | 80 | 1 | 27 | 0.8 | 0.500 |
| SGL1M |
|
DO-213AA | 100 | 1 | 27 | 0.8 | 0.500 |
| SGL2A |
|
DO-213AA | 20 | 2 | 45 | 0.55 | 0.500 |
| SGL2B |
|
DO-213AA | 30 | 2 | 45 | 0.55 | 0.500 |
| SGL2D |
|
DO-213AA | 40 | 2 | 45 | 0.55 | 0.500 |
| SGL2G |
|
DO-213AA | 50 | 2 | 45 | 0.85 | 0.500 |
| SGL2J |
|
DO-213AA | 60 | 2 | 45 | 0.85 | 0.500 |
| SGL2K |
|
DO-213AA | 80 | 2 | 45 | 0.85 | 0.500 |
| SGL2M |
|
DO-213AA | 100 | 2 | 45 | 0.85 | 0.500 |
| SGP0120SL1 |
|
eSGP (SOD-323F) | 20 | 1 | 9 | 0.5 | 0.200 |
| SGP0130SL1 |
|
eSGP (SOD-323F) | 30 | 1 | 9 | 0.5 | 0.200 |
| SGP0140SL1 |
|
eSGP (SOD-323F) | 40 | 1 | 9 | 0.5 | 0.200 |
| SK12 |
|
DO-214AC (SMA) | 20 | 1 | 30 | 0.5 | 0.200 |
| SK13 |
|
DO-214AC (SMA) | 30 | 1 | 30 | 0.5 | 0.200 |
| SK14 |
|
DO-214AC (SMA) | 40 | 1 | 30 | 0.5 | 0.200 |
| SK15 |
|
DO-214AC (SMA) | 50 | 1 | 30 | 0.7 | 0.150 |
| SK16 |
|
DO-214AC (SMA) | 60 | 1 | 30 | 0.7 | 0.150 |
| SK17 |
|
DO-214AC (SMA) | 70 | 1 | 30 | 0.79 | 0.030 |
| SK18 |
|
DO-214AC (SMA) | 80 | 1 | 30 | 0.79 | 0.030 |
| SK19 |
|
DO-214AC (SMA) | 90 | 1 | 30 | 0.79 | 0.030 |
| SK1B |
|
DO-214AC (SMA) | 100 | 1 | 30 | 0.79 | 0.030 |
| SK1B5 |
|
DO-214AC (SMA) | 150 | 1 | 30 | 0.85 | 0.030 |
| SK1C0 |
|
DO-214AC (SMA) | 200 | 1 | 30 | 0.85 | 0.030 |
| SK1C0A |
|
DO-214AC (SMA) | 200 | 1 | 30 | 0.85 | 0.100 |
| SK22 |
|
DO-214AA (SMB) | 20 | 2 | 50 | 0.55 | 0.200 |
| SK22A |
|
DO-214AC (SMA) | 20 | 2 | 50 | 0.55 | 0.200 |
| SK23 |
|
DO-214AA (SMB) | 30 | 2 | 50 | 0.55 | 0.200 |
| SK23A |
|
DO-214AC (SMA) | 30 | 2 | 50 | 0.55 | 0.200 |
| SK24 |
|
DO-214AA (SMB) | 40 | 2 | 50 | 0.55 | 0.200 |
| SK24A |
|
DO-214AC (SMA) | 40 | 2 | 50 | 0.55 | 0.200 |
| SK25 |
|
DO-214AA (SMB) | 50 | 2 | 50 | 0.7 | 0.150 |
| SK25A |
|
DO-214AC (SMA) | 50 | 2 | 50 | 0.7 | 0.150 |
| SK26 |
|
DO-214AA (SMB) | 60 | 2 | 50 | 0.7 | 0.150 |
| SK26A |
|
DO-214AC (SMA) | 60 | 2 | 50 | 0.7 | 0.150 |
| SK27 |
|
DO-214AA (SMB) | 70 | 2 | 50 | 0.79 | 0.030 |
| SK27A |
|
DO-214AC (SMA) | 70 | 2 | 50 | 0.79 | 0.030 |
| SK28 |
|
DO-214AA (SMB) | 80 | 2 | 50 | 0.79 | 0.030 |
| SK28A |
|
DO-214AC (SMA) | 80 | 2 | 50 | 0.79 | 0.030 |
| SK29 |
|
DO-214AA (SMB) | 90 | 2 | 50 | 0.79 | 0.030 |
| SK29A |
|
DO-214AC (SMA) | 90 | 2 | 50 | 0.79 | 0.030 |
| SK2B |
|
DO-214AA (SMB) | 100 | 2 | 50 | 0.79 | 0.030 |
| SK2B5A |
|
DO-214AC (SMA) | 150 | 2 | 50 | 0.85 | 0.030 |
| SK2B5B |
|
DO-214AA (SMB) | 150 | 2 | 50 | 0.85 | 0.030 |
| SK2BA |
|
DO-214AC (SMA) | 100 | 2 | 50 | 0.79 | 0.030 |
| SK2C0A |
|
DO-214AC (SMA) | 200 | 2 | 50 | 0.85 | 0.030 |
| SK2C0B |
|
DO-214AA (SMB) | 200 | 2 | 50 | 0.85 | 0.030 |
| SK32 |
|
DO-214AB (SMC) | 20 | 3 | 100 | 0.55 | 0.200 |
| SK32A |
|
DO-214AC (SMA) | 20 | 3 | 100 | 0.55 | 0.200 |
| SK32B |
|
DO-214AA (SMB) | 20 | 3 | 50 | 0.55 | 0.200 |
| SK33 |
|
DO-214AB (SMC) | 30 | 3 | 100 | 0.55 | 0.200 |
| SK33A |
|
DO-214AC (SMA) | 30 | 3 | 100 | 0.55 | 0.200 |
| SK33B |
|
DO-214AA (SMB) | 30 | 3 | 50 | 0.55 | 0.200 |
| SK34 |
|
DO-214AB (SMC) | 40 | 3 | 100 | 0.55 | 0.200 |
| SK34A |
|
DO-214AC (SMA) | 40 | 3 | 100 | 0.55 | 0.200 |
| SK34B |
|
DO-214AA (SMB) | 40 | 3 | 50 | 0.55 | 0.200 |
| SK35 |
|
DO-214AB (SMC) | 50 | 3 | 100 | 0.7 | 0.150 |
| SK35A |
|
DO-214AC (SMA) | 50 | 3 | 100 | 0.7 | 0.150 |
| SK35B |
|
DO-214AA (SMB) | 50 | 3 | 50 | 0.7 | 0.150 |
| SK36 |
|
DO-214AB (SMC) | 60 | 3 | 100 | 0.7 | 0.150 |
| SK36A |
|
DO-214AC (SMA) | 60 | 3 | 100 | 0.7 | 0.150 |
| SK36B |
|
DO-214AA (SMB) | 60 | 3 | 50 | 0.7 | 0.150 |
| SK37 |
|
DO-214AB (SMC) | 70 | 3 | 100 | 0.79 | 0.030 |
| SK37A |
|
DO-214AC (SMA) | 70 | 3 | 100 | 0.79 | 0.030 |
| SK37B |
|
DO-214AA (SMB) | 70 | 3 | 100 | 0.79 | 0.030 |
| SK38 |
|
DO-214AB (SMC) | 80 | 3 | 100 | 0.79 | 0.030 |
| SK38A |
|
DO-214AC (SMA) | 80 | 3 | 100 | 0.79 | 0.030 |
| SK38B |
|
DO-214AA (SMB) | 80 | 3 | 100 | 0.79 | 0.030 |
| SK39 |
|
DO-214AB (SMC) | 90 | 3 | 100 | 0.79 | 0.030 |
| SK39A |
|
DO-214AC (SMA) | 90 | 3 | 100 | 0.79 | 0.030 |
| SK39B |
|
DO-214AA (SMB) | 90 | 3 | 100 | 0.79 | 0.030 |
| SK3B |
|
DO-214AB (SMC) | 100 | 3 | 100 | 0.79 | 0.030 |
| SK3B5A |
|
DO-214AC (SMA) | 150 | 3 | 100 | 0.85 | 0.030 |
| SK3B5B |
|
DO-214AA (SMB) | 150 | 3 | 100 | 0.85 | 0.030 |
| SK3B5C |
|
DO-214AB (SMC) | 150 | 3 | 100 | 0.85 | 0.030 |
| SK3BA |
|
DO-214AC (SMA) | 100 | 3 | 100 | 0.79 | 0.030 |
| SK3BB |
|
DO-214AA (SMB) | 100 | 3 | 100 | 0.79 | 0.030 |
| SK3C0A |
|
DO-214AC (SMA) | 200 | 3 | 100 | 0.85 | 0.030 |
| SK3C0B |
|
DO-214AA (SMB) | 200 | 3 | 100 | 0.85 | 0.030 |
| SK3C0C |
|
DO-214AB (SMC) | 200 | 3 | 100 | 0.85 | 0.030 |
| SK52 |
|
DO-214AB (SMC) | 20 | 5 | 120 | 0.55 | 0.200 |
| SK52A |
|
DO-214AC (SMA) | 20 | 5 | 120 | 0.55 | 0.200 |
| SK52B |
|
DO-214AA (SMB) | 20 | 5 | 120 | 0.55 | 0.200 |
| SK53 |
|
DO-214AB (SMC) | 30 | 5 | 120 | 0.55 | 0.200 |
| SK53A |
|
DO-214AC (SMA) | 30 | 5 | 120 | 0.55 | 0.200 |
| SK53B |
|
DO-214AA (SMB) | 30 | 5 | 120 | 0.55 | 0.200 |
| SK54 |
|
DO-214AB (SMC) | 40 | 5 | 120 | 0.55 | 0.200 |
| SK54A |
|
DO-214AC (SMA) | 40 | 5 | 120 | 0.55 | 0.200 |
| SK54B |
|
DO-214AA (SMB) | 40 | 5 | 120 | 0.55 | 0.200 |
| SK55 |
|
DO-214AB (SMC) | 50 | 5 | 120 | 0.67 | 0.150 |
| SK55A |
|
DO-214AC (SMA) | 50 | 5 | 120 | 0.67 | 0.150 |
| SK55B |
|
DO-214AA (SMB) | 50 | 5 | 120 | 0.67 | 0.150 |
| SK56 |
|
DO-214AB (SMC) | 60 | 5 | 120 | 0.67 | 0.150 |
| SK56A |
|
DO-214AC (SMA) | 60 | 5 | 120 | 0.67 | 0.150 |
| SK56B |
|
DO-214AA (SMB) | 60 | 5 | 120 | 0.67 | 0.150 |
| SK57 |
|
DO-214AB (SMC) | 70 | 5 | 120 | 0.79 | 0.030 |
| SK57A |
|
DO-214AC (SMA) | 70 | 5 | 120 | 0.79 | 0.030 |
| SK57B |
|
DO-214AA (SMB) | 70 | 5 | 120 | 0.79 | 0.030 |
| SK58 |
|
DO-214AB (SMC) | 80 | 5 | 120 | 0.79 | 0.030 |
| SK58A |
|
DO-214AC (SMA) | 80 | 5 | 120 | 0.79 | 0.030 |
| SK58B |
|
DO-214AA (SMB) | 80 | 5 | 120 | 0.79 | 0.030 |
| SK59 |
|
DO-214AB (SMC) | 90 | 5 | 120 | 0.79 | 0.030 |
| SK59A |
|
DO-214AC (SMA) | 90 | 5 | 120 | 0.79 | 0.030 |
| SK59B |
|
DO-214AA (SMB) | 90 | 5 | 120 | 0.79 | 0.030 |
| SK5B |
|
DO-214AB (SMC) | 100 | 5 | 120 | 0.79 | 0.030 |
| SK5B5A |
|
DO-214AC (SMA) | 150 | 5 | 120 | 0.85 | 0.030 |
| SK5B5B |
|
DO-214AA (SMB) | 150 | 5 | 120 | 0.85 | 0.030 |
| SK5B5C |
|
DO-214AB (SMC) | 150 | 5 | 120 | 0.85 | 0.030 |
| SK5BA |
|
DO-214AC (SMA) | 100 | 5 | 120 | 0.79 | 0.030 |
| SK5BB |
|
DO-214AA (SMB) | 100 | 5 | 120 | 0.79 | 0.030 |
| SK5C0A |
|
DO-214AC (SMA) | 200 | 5 | 120 | 0.85 | 0.030 |
| SK5C0B |
|
DO-214AA (SMB) | 200 | 5 | 120 | 0.85 | 0.030 |
| SK5C0C |
|
DO-214AB (SMC) | 200 | 5 | 120 | 0.85 | 0.030 |
| SK82 |
|
DO-214AB (SMC) | 20 | 8 | 175 | 0.55 | 0.200 |
| SK83 |
|
DO-214AB (SMC) | 30 | 8 | 175 | 0.55 | 0.200 |
| SK84 |
|
DO-214AB (SMC) | 40 | 8 | 175 | 0.55 | 0.200 |
| SK85 |
|
DO-214AB (SMC) | 50 | 8 | 175 | 0.7 | 0.150 |
| SK86 |
|
DO-214AB (SMC) | 60 | 8 | 175 | 0.7 | 0.150 |
| SK87 |
|
DO-214AB (SMC) | 70 | 8 | 175 | 0.85 | 0.030 |
| SK88 |
|
DO-214AB (SMC) | 80 | 8 | 175 | 0.85 | 0.030 |
| SK89 |
|
DO-214AB (SMC) | 90 | 8 | 175 | 0.85 | 0.030 |
| SK8B |
|
DO-214AB (SMC) | 100 | 8 | 175 | 0.85 | 0.030 |
| SL110A |
|
DO-214AC (SMA) | 100 | 1 | 45 | 0.68 | 0.200 |
| SL12 |
|
DO-214AC (SMA) | 20 | 1 | 30 | 0.38 | 5.000 |
| SL12A |
|
DO-214AC (SMA) | 20 | 1 | 45 | 0.42 | 0.200 |
| SL13A |
|
DO-214AC (SMA) | 30 | 1 | 45 | 0.42 | 0.200 |
| SL14A |
|
DO-214AC (SMA) | 40 | 1 | 45 | 0.42 | 0.200 |
| SL15A |
|
DO-214AC (SMA) | 50 | 1 | 45 | 0.5 | 0.200 |
| SL16A |
|
DO-214AC (SMA) | 60 | 1 | 45 | 0.5 | 0.200 |
| SL17A |
|
DO-214AC (SMA) | 70 | 1 | 45 | 0.68 | 0.200 |
| SL18A |
|
DO-214AC (SMA) | 80 | 1 | 45 | 0.68 | 0.200 |
| SL19A |
|
DO-214AC (SMA) | 90 | 1 | 45 | 0.68 | 0.200 |
| SL210A |
|
DO-214AC (SMA) | 100 | 2 | 45 | 0.72 | 0.150 |
| SL210B |
|
DO-214AA (SMB) | 100 | 2 | 45 | 0.72 | 0.150 |
| SL22A |
|
DO-214AC (SMA) | 20 | 2 | 45 | 0.42 | 0.200 |
| SL22B |
|
DO-214AA (SMB) | 20 | 2 | 45 | 0.42 | 0.200 |
| SL23A |
|
DO-214AC (SMA) | 30 | 2 | 45 | 0.42 | 0.200 |
| SL23B |
|
DO-214AA (SMB) | 30 | 2 | 45 | 0.42 | 0.200 |
| SL24A |
|
DO-214AC (SMA) | 40 | 2 | 45 | 0.42 | 0.200 |
| SL24B |
|
DO-214AA (SMB) | 40 | 2 | 45 | 0.42 | 0.200 |
| SL25A |
|
DO-214AC (SMA) | 50 | 2 | 45 | 0.47 | 0.150 |
| SL25B |
|
DO-214AA (SMB) | 50 | 2 | 45 | 0.47 | 0.150 |
| SL26A |
|
DO-214AC (SMA) | 60 | 2 | 45 | 0.47 | 0.150 |
| SL26B |
|
DO-214AA (SMB) | 60 | 2 | 45 | 0.47 | 0.150 |
| SL27A |
|
DO-214AC (SMA) | 70 | 2 | 45 | 0.72 | 0.150 |
| SL27B |
|
DO-214AA (SMB) | 70 | 2 | 45 | 0.72 | 0.150 |
| SL28A |
|
DO-214AC (SMA) | 80 | 2 | 45 | 0.72 | 0.150 |
| SL28B |
|
DO-214AA (SMB) | 80 | 2 | 45 | 0.72 | 0.150 |
| SL29A |
|
DO-214AC (SMA) | 90 | 2 | 45 | 0.72 | 0.150 |
| SL29B |
|
DO-214AA (SMB) | 90 | 2 | 45 | 0.72 | 0.150 |
| SL310A |
|
DO-214AC (SMA) | 100 | 3 | 80 | 0.75 | 0.050 |
| SL310B |
|
DO-214AA (SMB) | 100 | 3 | 80 | 0.75 | 0.150 |
| SL310C |
|
DO-214AB (SMC) | 100 | 3 | 80 | 0.75 | 0.050 |
| SL32A |
|
DO-214AC (SMA) | 20 | 3 | 80 | 0.42 | 0.200 |
| SL32B |
|
DO-214AA (SMB) | 20 | 3 | 80 | 0.42 | 0.200 |
| SL32C |
|
DO-214AB (SMC) | 20 | 3 | 80 | 0.42 | 0.200 |
| SL33A |
|
DO-214AC (SMA) | 30 | 3 | 80 | 0.42 | 0.200 |
| SL33B |
|
DO-214AA (SMB) | 30 | 3 | 80 | 0.42 | 0.200 |
| SL33C |
|
DO-214AB (SMC) | 30 | 3 | 80 | 0.42 | 0.200 |
| SL34A |
|
DO-214AC (SMA) | 40 | 3 | 80 | 0.42 | 0.200 |
| SL34B |
|
DO-214AA (SMB) | 40 | 3 | 80 | 0.42 | 0.200 |
| SL34C |
|
DO-214AB (SMC) | 40 | 3 | 80 | 0.42 | 0.200 |
| SL35A |
|
DO-214AC (SMA) | 50 | 3 | 80 | 0.5 | 0.200 |
| SL35B |
|
DO-214AA (SMB) | 50 | 3 | 80 | 0.5 | 0.150 |
| SL35C |
|
DO-214AB (SMC) | 50 | 3 | 80 | 0.5 | 0.200 |
| SL36A |
|
DO-214AC (SMA) | 60 | 3 | 80 | 0.5 | 0.200 |
| SL36B |
|
DO-214AA (SMB) | 60 | 3 | 80 | 0.5 | 0.150 |
| SL36C |
|
DO-214AB (SMC) | 60 | 3 | 80 | 0.5 | 0.200 |
| SL37A |
|
DO-214AC (SMA) | 70 | 3 | 80 | 0.75 | 0.050 |
| SL37B |
|
DO-214AA (SMB) | 70 | 3 | 80 | 0.75 | 0.150 |
| SL37C |
|
DO-214AB (SMC) | 70 | 3 | 80 | 0.75 | 0.050 |
| SL38A |
|
DO-214AC (SMA) | 80 | 3 | 80 | 0.75 | 0.050 |
| SL38B |
|
DO-214AA (SMB) | 80 | 3 | 80 | 0.75 | 0.150 |
| SL38C |
|
DO-214AB (SMC) | 80 | 3 | 80 | 0.75 | 0.050 |
| SL39A |
|
DO-214AC (SMA) | 90 | 3 | 80 | 0.75 | 0.050 |
| SL39B |
|
DO-214AA (SMB) | 90 | 3 | 80 | 0.75 | 0.150 |
| SL39C |
|
DO-214AB (SMC) | 90 | 3 | 80 | 0.75 | 0.050 |
| SL510B |
|
DO-214AA (SMB) | 100 | 5 | 250 | 0.7 | 0.050 |
| SL510C |
|
DO-214AB (SMC) | 100 | 5 | 250 | 0.7 | 0.500 |
| SL52B |
|
DO-214AA (SMB) | 20 | 5 | 120 | 0.43 | 0.500 |
| SL52C |
|
DO-214AB (SMC) | 20 | 5 | 120 | 0.43 | 0.500 |
| SL53B |
|
DO-214AA (SMB) | 30 | 5 | 120 | 0.43 | 0.500 |
| SL53C |
|
DO-214AB (SMC) | 30 | 5 | 120 | 0.43 | 0.500 |
| SL54B |
|
DO-214AA (SMB) | 40 | 5 | 120 | 0.43 | 0.500 |
| SL54C |
|
DO-214AB (SMC) | 40 | 5 | 120 | 0.43 | 0.500 |
| SL55B |
|
DO-214AA (SMB) | 50 | 5 | 120 | 0.5 | 0.500 |
| SL55C |
|
DO-214AB (SMC) | 50 | 5 | 120 | 0.5 | 0.500 |
| SL56B |
|
DO-214AA (SMB) | 60 | 5 | 120 | 0.5 | 0.500 |
| SL56C |
|
DO-214AB (SMC) | 60 | 5 | 120 | 0.5 | 0.500 |
| SL57B |
|
DO-214AA (SMB) | 70 | 5 | 250 | 0.7 | 0.050 |
| SL57C |
|
DO-214AB (SMC) | 70 | 5 | 250 | 0.7 | 0.500 |
| SL58B |
|
DO-214AA (SMB) | 80 | 5 | 250 | 0.7 | 0.050 |
| SL58C |
|
DO-214AB (SMC) | 80 | 5 | 250 | 0.7 | 0.500 |
| SL59B |
|
DO-214AA (SMB) | 90 | 5 | 250 | 0.7 | 0.050 |
| SL59C |
|
DO-214AB (SMC) | 90 | 5 | 250 | 0.7 | 0.500 |
| SMBR20100S |
|
TO-220-AB | 100 | 20 | 150 | 0.6 | 0.500 |
| SMBR30100CT |
|
TO-220-AB | 100 | 30 | 200 | 0.72 | 0.500 |
| SMBRB4045CT |
|
TO-263 (D2PAK) | 45 | 40 | 250 | 0.55 | 0.500 |
| SMBRF20100S |
|
ITO-220-AB | 100 | 20 | 150 | 0.6 | 0.500 |
| SMBRF30100CT |
|
ITO-220-AB | 100 | 30 | 200 | 0.72 | 0.500 |
| SMBRFH3065CT |
|
ITO-220-AB | 65 | 30 | 200 | 0.6 | 0.500 |
| SMBRH3065CT |
|
TO-220-AB | 65 | 30 | 200 | 0.6 | 0.500 |
| SMBRP15100 |
|
POWER QFN5X6 | 100 | 15 | 150 | 0.8 | 0.200 |
| SMBRP1545 |
|
POWER QFN5X6 | 45 | 15 | 250 | 0.47 | 0.500 |
| SMBRP2050 |
|
POWER QFN5X6 | 50 | 20 | 200 | 0.55 | 0.500 |
Part Number
from
to
Data
Sheet
Sheet
from
to
Package
from
to
VRRM
(V)
(V)
from
to
IAV
(A)
(A)
from
to
IFSM
(A)
(A)
from
to
VF
(V)
(V)
from
to
IR
(uA)
(uA)
from
to

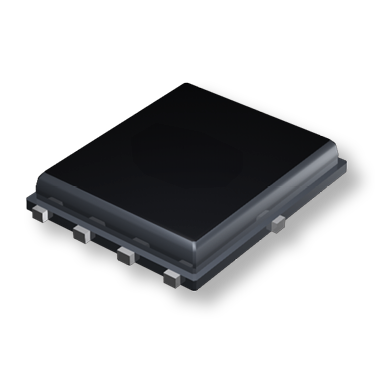

GSGP2R608
Good-Ark Semiconductor introduces GSGP2R608, a 80V, 170A, N-Channel SGT MOSFET with industry’s lowest RDS(ON) of 2.2mΩ (typ.), Qgd=17nC @ID=50A, VGS=10V.

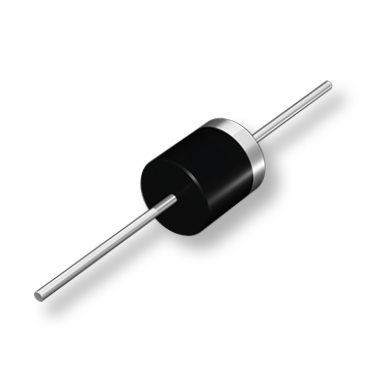

15KW-30KW Transient Voltage Suppressors (TVS)
Low Leakage, Fast Response Time, Excellent Clamping Capability in Industry Standard P600 Package
GSJA65R041
Good-Ark Semiconductor introduces GSJA65R041, a 650V, 70A, 37mΩ, N-Channel, low noise super junction MOSFET to meet the demand of noise-sensitive applications.
Free samples available for immediate testing
Call (+1) 631-319-1858 or email [email protected]
