Bridge Rectifiers

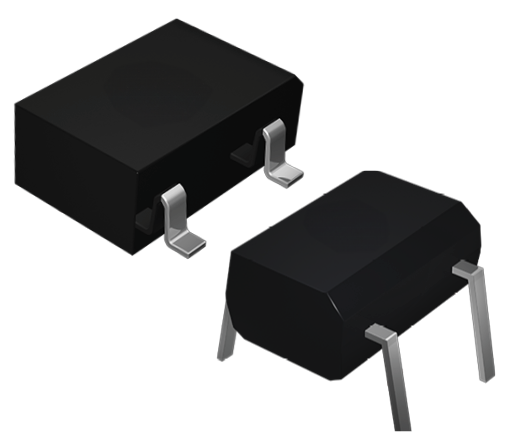

Schottky Bridge Rectifiers
| Part Number |
Data Sheet |
Package |
VRWM (V) |
IR max (uA) |
IFSM (A) |
VF (V) |
IR (uA) |
|---|---|---|---|---|---|---|---|
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
||
Clear All Filters |
|||||||
| DB310 |
|
DFS | 100 | 3.0 | 70 | 0.79 | 100 |
| DB315 |
|
DFS | 150 | 3.0 | 70 | 0.85 | 100 |
| DB32 |
|
DFS | 20 | 3.0 | 70 | 0.50 | 200 |
| DB320 |
|
DFS | 200 | 3.0 | 70 | 0.85 | 100 |
| DB34 |
|
DFS | 40 | 3.0 | 70 | 0.50 | 200 |
| DB36 |
|
DFS | 60 | 3.0 | 70 | 0.63 | 200 |
| DB39 |
|
DFS | 90 | 3.0 | 70 | 0.79 | 100 |
| DB510 |
|
DFS | 100 | 5.0 | 120 | 0.82 | 100 |
| DB515 |
|
DFS | 150 | 5.0 | 120 | 0.85 | 100 |
| DB52 |
|
DFS | 20 | 5.0 | 120 | 0.55 | 200 |
| DB520 |
|
DFS | 200 | 5.0 | 120 | 0.85 | 100 |
| DB54 |
|
DFS | 40 | 5.0 | 120 | 0.55 | 200 |
| DB56 |
|
DFS | 60 | 5.0 | 120 | 0.70 | 200 |
| DB59 |
|
DFS | 90 | 5.0 | 120 | 0.82 | 100 |
| GSBK02K504 |
|
K5 | 40 | 2 | 50 | 0.52 | 0.200 |
| GSBK02K506 |
|
K5 | 60 | 2 | 50 | 0.7 | 0.200 |
| GSBK02K510 |
|
K5 | 100 | 2 | 50 | 0.85 | 0.200 |
| GSMB310S |
|
MBS | 100 | 3.0 | 80 | 0.68 | 100 |
| MB110S |
|
TO-269AA (MBS) | 100 | 1.0 | 30 | 0.85 | 500 |
| MB115S |
|
TO-269AA (MBS) | 150 | 1.0 | 30 | 0.89 | 30 |
| MB12S |
|
TO-269AA (MBS) | 20 | 1.0 | 30 | 0.50 | 500 |
| MB14S |
|
TO-269AA (MBS) | 40 | 1.0 | 30 | 0.50 | 500 |
| MB16S |
|
TO-269AA (MBS) | 60 | 1.0 | 30 | 0.70 | 500 |
| MB18S |
|
TO-269AA (MBS) | 80 | 1.0 | 30 | 0.85 | 500 |
| MB20M |
|
MBM | 100 | 2.0 | 50 | 0.85 | 500 |
| MB210S |
|
TO-269AA (MBS) | 100 | 2.0 | 50 | 0.85 | 500 |
| MB22M |
|
MBM | 20 | 2.0 | 50 | 0.55 | 500 |
| MB22S |
|
TO-269AA (MBS) | 20 | 2.0 | 50 | 0.55 | 500 |
| MB24M |
|
MBM | 40 | 2.0 | 50 | 0.55 | 500 |
| MB24S |
|
TO-269AA (MBS) | 40 | 2.0 | 50 | 0.55 | 500 |
| MB26M |
|
MBM | 60 | 2.0 | 50 | 0.70 | 500 |
| MB26S |
|
TO-269AA (MBS) | 60 | 2.0 | 50 | 0.70 | 500 |
| MB28M |
|
MBM | 80 | 2.0 | 50 | 0.85 | 500 |
| MB28S |
|
TO-269AA (MBS) | 80 | 2.0 | 50 | 0.85 | 500 |
