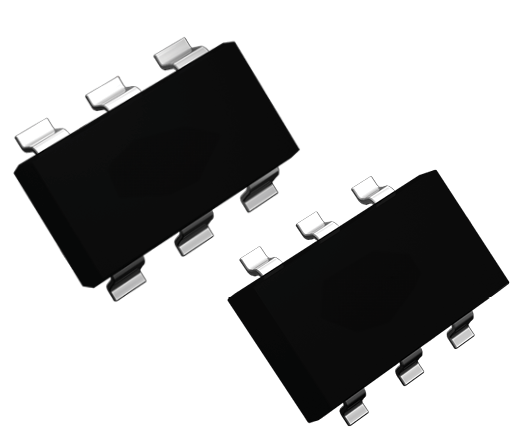

Complementary N+P Transistors
|
Part Number
|
Data
Sheet |
Package
|
Polarity
|
VCEO
(V) |
VCBO
(V) |
VEBO
(V) |
IC
(A) |
PD
(W) |
hFE
Min |
hFE
Max |
VCE(SAT)
(V) |
| GSBC847BVN |  |
SOT-563 | NPN+PNP | 45, -45 |
50, -50 |
6.0, -5.0 |
0.1, -0.1 |
0.15, 0.15 |
200, 220 |
450, 475 |
0.25, -0.30 |
| GSBC847PN | |
SOT-363 | NPN+PNP | 45, -45 |
50, -50 |
6.0, -5.0 |
0.1,-0.1 | 0.2, 0.2 |
200, 220 |
450, 475 |
0.25, -0.30 |
| GSTK6015 | |
SOT-363 | NPN+PNP | 50, -50 |
60, -60 |
7.0, -6.0 |
0.15, -0.15 |
0.15, 0.15 |
120, 120 |
560, 560 |
0.4, -0.5 |
| MMBT2227A | |
SOT-23-6L | NPN+PNP | 40, -60 |
75, -60 |
6.0, -5.0 |
0.6, -0.6 |
0.2, 0.2 |
100, 100 |
300, 300 |
0.3, -0.4 |
| MMDT2227 | |
SOT-363 | NPN+PNP | 40, -60 |
75, -60 |
6.0, -5.0 |
0.6, -0.6 |
0.2, 0.2 |
100, 100 |
300, 300 |
0.3, -0.4 |
| MMDT2227M | |
SOT-23-6L | NPN+PNP | 40, -60 |
75, -60 |
6.0, -5.0 |
0.6, -0.6 |
0.35, 0.35 |
100, 100 |
300, 300 |
0.3, -0.4 |
| MMDT3946 | |
SOT-363 | NPN+PNP | 40, -40 |
60, -40 |
5.0, -5.0 |
0.2, -0.2 |
0.2, 0.2 |
100, 100 |
300, 300 |
0.2, -0.25 |
| MMDT4413 | |
SOT-363 | NPN+PNP | 40, -40 |
60, -40 |
6.0, -5.0 |
0.6, -0.6 |
0.2, 0.2 |
100, 100 |
300, 300 |
0.4, -0.4 |
| MMDT5451 | |
SOT-363 | NPN+PNP | 160, -150 |
180, -160 |
6, -5 |
0.2, -0.2 |
0.2, 0.2 |
100, 100 |
300, 300 |
0.15, -0.2 |
