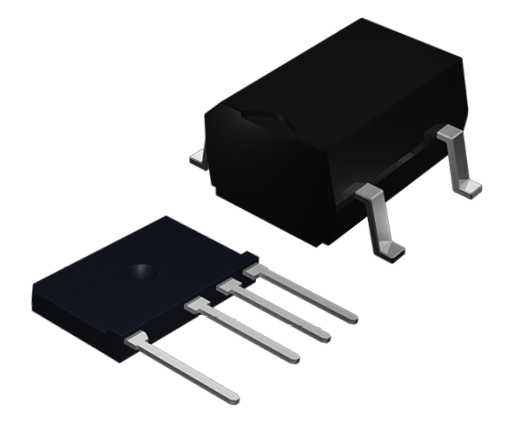

General Purpose Bridge Rectifiers

Diodes
Rectifiers
Bridge Rectifiers
Protection Devices
Mosfets
Transistors
MEMS
Wafer / Bare Die
Part Number Data
Sheet 		Package VRWM
(V) 		IF (AV)
(A) 		IFSM
(A) 		VF
(V) 		IR
(uA)
Filter
Filter
Filter
Filter
Filter
Filter
Clear All Filters
05B4B48 12-5A1A 100 0.5 30 1.00 10
05G4B48 12-5A1A 400 0.5 30 1.00 10
05GU4B48 12-5A1A 400 0.5 30 0.65 100
05J4B48 12-5A1A 600 0.5 30 1.00 10
2W005G WOB 50 2.0 50 1.10 10
2W01G WOB 100 2.0 50 1.10 10
2W02G WOB 200 2.0 50 1.10 10
2W04G WOB 400 2.0 50 1.10 10
2W06G WOB 600 2.0 50 1.10 10
2W08G WOB 800 2.0 50 1.10 10
2W10G WOB 1000 2.0 50 1.10 10
BR1005 BR 50 10.0 200 1.10 10
BR101 BR 100 10.0 200 1.10 10
BR1010 BR 1000 10.0 200 1.10 10
BR102 BR 200 10.0 200 1.10 10
BR104 BR 400 10.0 200 1.10 10
BR106 BR 600 10.0 200 1.10 10
BR108 BR 800 10.0 200 1.10 10
BR3005 BR 50 3.0 50 1.10 10
BR301 BR 100 3.0 50 1.10 10
BR302 BR 200 3.0 50 1.10 10
BR304 BR 400 3.0 50 1.10 10
BR306 BR 600 3.0 50 1.10 10
BR308 BR 800 3.0 50 1.10 10
BR310 BR 1000 3.0 50 1.10 10
BR6005 KBPC 50 6.0 150 1.00 10
BR601 KBPC 100 6.0 150 1.00 10
BR602 KBPC 200 6.0 150 1.00 10
BR604 KBPC 400 6.0 150 1.00 10
BR606 KBPC 600 6.0 150 1.00 10
BR608 KBPC 800 6.0 150 1.00 10
BR610 KBPC 1000 6.0 150 1.00 10
BR8005 KBPC 50 8.0 150 1.00 10
BR801 KBPC 100 8.0 150 1.00 10
BR802 KBPC 200 8.0 150 1.00 10
BR804 KBPC 400 8.0 150 1.00 10
BR806 KBPC 600 8.0 150 1.00 10
BR808 KBPC 800 8.0 150 1.00 10
BR810 KBPC 1000 8.0 150 1.00 10
DB101 DF 50 1.0 30 1.10 5
DB101S DFS 50 1.0 30 1.10 5
DB102 DF 100 1.0 30 1.10 5
DB102S DFS 100 1.0 30 1.10 5
DB103 DF 200 1.0 30 1.10 5
DB103S DFS 200 1.0 30 1.10 5
DB104 DF 400 1.0 30 1.10 5
DB104S DFS 400 1.0 30 1.10 5
DB105 DF 600 1.0 30 1.10 5
DB105S DFS 600 1.0 30 1.10 5
DB106 DF 800 1.0 30 1.10 5
DB106S DFS 800 1.0 30 1.10 5
DB107 DF 1000 1.0 30 1.10 5
DB107S DFS 1000 1.0 30 1.10 5
DB151 DFM 50 1.5 50 1.10 5
DB152 DFM 100 1.5 50 1.10 5
DB153 DFM 200 1.5 50 1.10 5
DB154 DFM 400 1.5 50 1.10 5
DB155 DFM 600 1.5 50 1.10 5
DB156 DFM 800 1.5 50 1.10 5
DB157 DFM 1000 1.5 50 1.10 5
DB201 DFM 50 2.0 60 1.20 5
DB201S DFS 50 2.0 60 1.20 5
DB202 DFM 100 2.0 60 1.20 5
DB202S DFS 100 2.0 60 1.20 5
DB203 DFM 200 2.0 60 1.20 5
DB203S DFS 200 2.0 60 1.20 5
DB204 DFM 400 2.0 60 1.20 5
DB204S DFS 400 2.0 60 1.20 5
DB205 DFM 600 2.0 60 1.20 5
DB205S DFS 600 2.0 60 1.20 5
DB206 DFM 800 2.0 60 1.20 5
DB206S DFS 800 2.0 60 1.20 5
DB207 DFM 1000 2.0 60 1.20 5
DB207S DFS 1000 2.0 60 1.20 5
DBS101 DFS 50 1.0 30 1.10 5
DBS102 DFS 100 1.0 30 1.10 5
DBS103 DFS 200 1.0 30 1.10 5
DBS104 DFS 400 1.0 30 1.10 5
DBS105 DFS 600 1.0 30 1.10 5
DBS106 DFS 800 1.0 30 1.10 5
DBS107 DFS 1000 1.0 30 1.10 5
DF005 DF 50 1.0 30 1.10 5
DF005S DFS 50 1.0 30 1.10 5
DF01 DF 100 1.0 30 1.10 5
DF01S DFS 100 1.0 30 1.10 5
DF02 DF 200 1.0 30 1.10 5
DF02S DFS 200 1.0 30 1.10 5
DF04 DF 400 1.0 30 1.10 5
DF04S DFS 400 1.0 30 1.10 5
DF06 DF 600 1.0 30 1.10 5
DF06S DFS 600 1.0 30 1.10 5
DF08 DF 800 1.0 30 1.10 5
DF08S DFS 800 1.0 30 1.10 5
DF10 DF 1000 1.0 30 1.10 5
DF10S DFS 1000 1.0 30 1.10 5
DF15005 DFM 50 1.5 50 1.10 5
DF15005S DFS 50 1.5 50 1.10 5
DF1501 DFM 100 1.5 50 1.10 5
DF1501S DFS 100 1.5 50 1.10 5
DF1502 DFM 200 1.5 50 1.10 5
DF1502S DFS 200 1.5 50 1.10 5
DF1504 DFM 400 1.5 50 1.10 5
DF1504S DFS 400 1.5 50 1.10 5
DF1506 DFM 600 1.5 50 1.10 5
DF1506S DFS 600 1.5 50 1.10 5
DF1508 DFM 800 1.5 50 1.10 5
DF1508S DFS 800 1.5 50 1.10 5
DF1510 DFM 1000 1.5 50 1.10 5
DF1510S DFS 1000 1.5 50 1.10 5
DF20005 DFM 50 2.0 60 1.20 5
DF20005S DFS 50 2.0 60 1.20 5
DF2001 DFM 100 2.0 60 1.20 5
DF2001S DFS 100 2.0 60 1.20 5
DF2002 DFM 200 2.0 60 1.20 5
DF2002S DFS 200 2.0 60 1.20 5
DF2004 DFM 400 2.0 60 1.20 5
DF2004S DFS 400 2.0 60 1.20 5
DF2006 DFM 600 2.0 60 1.20 5
DF2006S DFS 600 2.0 60 1.20 5
DF2008 DFM 800 2.0 60 1.20 5
DF2008S DFS 800 2.0 60 1.20 5
DF2010 DFM 1000 2.0 60 1.20 5
DF2010S DFS 1000 2.0 60 1.20 5
GBJ10A GBJ(5S) 50 10.0 200 1.00 5
GBJ10B GBJ(5S) 100 10.0 200 1.00 5
GBJ10D GBJ(5S) 200 10.0 200 1.00 5
GBJ10G GBJ(5S) 400 10.0 200 1.00 5
GBJ10J GBJ(5S) 600 10.0 200 1.00 5
GBJ10K GBJ(5S) 800 10.0 200 1.00 5
GBJ10M GBJ(5S) 1000 10.0 200 1.00 5
GBJ15A GBJ(5S) 50 15.0 200 1.00 5
GBJ15AU GBJ(5S) 50 15.0 240 1.00 5
GBJ15B GBJ(5S) 100 15.0 200 1.00 5
GBJ15BU GBJ(5S) 100 15.0 240 1.00 5
GBJ15D GBJ(5S) 200 15.0 200 1.00 5
GBJ15DU GBJ(5S) 200 15.0 240 1.00 5
GBJ15G GBJ(5S) 400 15.0 200 1.00 5
GBJ15GU GBJ(5S) 400 15.0 240 1.00 5
GBJ15J GBJ(5S) 600 15.0 200 1.00 5
GBJ15JU GBJ(5S) 600 15.0 240 1.00 5
GBJ15K GBJ(5S) 800 15.0 200 1.00 5
GBJ15KU GBJ(5S) 800 15.0 240 1.00 5
GBJ15M GBJ(5S) 1000 15.0 200 1.00 5
GBJ15MU GBJ(5S) 1000 15.0 240 1.00 5
GBJ20005 GBJ(5S) 50 20.0 280 1.00 5
GBJ20005S 4GBJ 50 20.0 260 1.10 5
GBJ2001 GBJ(5S) 100 20.0 280 1.00 5
GBJ2001S 4GBJ 100 20.0 260 1.10 5
GBJ2002 GBJ(5S) 200 20.0 280 1.00 5
GBJ2002S 4GBJ 200 20.0 260 1.10 5
GBJ2004 GBJ(5S) 400 20.0 280 1.00 5
GBJ2004S 4GBJ 400 20.0 260 1.10 5
GBJ2006 GBJ(5S) 600 20.0 280 1.00 5
GBJ2006S 4GBJ 600 20.0 260 1.10 5
GBJ2008 GBJ(5S) 800 20.0 280 1.00 5
GBJ2008S 4GBJ 800 20.0 260 1.10 5
GBJ2010 GBJ(5S) 1000 20.0 280 1.00 5
GBJ2010S 4GBJ 1000 20.0 260 1.10 5
GBJ25005 GBJ(5S) 50 25.0 320 1.00 5
GBJ25005A GBJ(5S) 50 25.0 350 1.00 5
GBJ2501 GBJ(5S) 100 25.0 320 1.00 5
GBJ2501A GBJ(5S) 100 25.0 350 1.00 5
GBJ2502 GBJ(5S) 200 25.0 320 1.00 5
GBJ2502A GBJ(5S) 200 25.0 350 1.00 5
GBJ2504 GBJ(5S) 400 25.0 320 1.00 5
GBJ2504A GBJ(5S) 400 25.0 350 1.00 5
GBJ2506 GBJ(5S) 600 25.0 320 1.00 5
GBJ2506A GBJ(5S) 600 25.0 350 1.00 5
GBJ2508 GBJ(5S) 800 25.0 320 1.00 5
GBJ2508A GBJ(5S) 800 25.0 350 1.00 5
GBJ2510 GBJ(5S) 1000 25.0 320 1.00 5
GBJ2510A GBJ(5S) 1000 25.0 350 1.00 5
GBJ25A GBJ(5S) 50 25.0 350 1.00 5
GBJ25B GBJ(5S) 100 25.0 350 1.00 5
GBJ25D GBJ(5S) 200 25.0 350 1.00 5
GBJ25G GBJ(5S) 400 25.0 350 1.00 5
GBJ25J GBJ(5S) 600 25.0 350 1.00 5
GBJ25K GBJ(5S) 800 25.0 350 1.00 5
GBJ25M GBJ(5S) 1000 25.0 350 1.00 5
GBJ35J GBJ(5S) 600 35.0 450 1.05 5
GBJ35K GBJ(5S) 800 35.0 450 1.05 5
GBJ35M GBJ(5S) 1000 35.0 450 1.05 5
GBJ6A GBJ(5S) 50 6.0 150 1.00 5
GBJ6AU GBJ(5S) 50 6.0 180 1.00 5
GBJ6B GBJ(5S) 100 6.0 150 1.00 5
GBJ6BU GBJ(5S) 100 6.0 180 1.00 5
GBJ6D GBJ(5S) 200 6.0 150 1.00 5
GBJ6DU GBJ(5S) 200 6.0 180 1.00 5
GBJ6G GBJ(5S) 400 6.0 150 1.00 5
GBJ6GU GBJ(5S) 400 6.0 180 1.00 5
GBJ6J GBJ(5S) 600 6.0 150 1.00 5
GBJ6JU GBJ(5S) 600 6.0 180 1.00 5
GBJ6K GBJ(5S) 800 6.0 150 1.00 5
GBJ6KU GBJ(5S) 800 6.0 180 1.00 5
GBJ6M GBJ(5S) 1000 6.0 150 1.00 5
GBJ6MU GBJ(5S) 1000 6.0 180 1.00 5
GBJ8A GBJ(5S) 50 8.0 180 1.00 5
GBJ8B GBJ(5S) 100 8.0 180 1.00 5
GBJ8D GBJ(5S) 200 8.0 180 1.00 5
GBJ8G GBJ(5S) 400 8.0 180 1.00 5
GBJ8J GBJ(5S) 600 8.0 180 1.00 5
GBJ8K GBJ(5S) 800 8.0 180 1.00 5
GBJ8M GBJ(5S) 1000 8.0 180 1.00 5
GBJL10J GBJL 600 10.0 180 0.98 5
GBJL10JA GBJL 600 10.0 150 1.00 5
GBJL10K GBJL 800 10.0 180 0.98 5
GBJL10KA GBJL 800 10.0 150 1.00 5
GBJL10M GBJL 1000 10.0 180 0.98 5
GBJL10MA GBJL 1000 10.0 150 1.00 5
GBJL15J GBJL 600 15.0 240 1.10 5
GBJL15JA GBJL 600 15.0 180 1.10 5
GBJL15K GBJL 800 15.0 240 1.10 5
GBJL15KA GBJL 800 15.0 180 1.10 5
GBJL15M GBJL 1000 15.0 240 1.10 5
GBJL15MA GBJL 1000 15.0 180 1.10 5
GBJL20J GBJL 600 20.0 280 1.00 5
GBJL20JA GBJL 600 20.0 240 1.10 10
GBJL20K GBJL 800 20.0 280 1.00 5
GBJL20KA GBJL 800 20.0 240 1.10 10
GBJL20M GBJL 1000 20.0 280 1.00 5
GBJL20MA GBJL 1000 20.0 240 1.10 10
GBJL25J GBJL 600 25.0 350 1.10 5
GBJL25JA GBJL 600 25.0 280 1.05 5
GBJL25K GBJL 800 25.0 350 1.10 5
GBJL25KA GBJL 800 25.0 280 1.05 5
GBJL25M GBJL 1000 25.0 350 1.10 5
GBJL25MA GBJL 1000 25.0 280 1.05 5
GBJL30J GBJL 600 30.0 350 1.10 10
GBJL30K GBJL 800 30.0 350 1.10 10
GBJL30M GBJL 1000 30.0 350 1.10 10
GBJL35J GBJL 600 35.0 450 1.05 5
GBJL35K GBJL 800 35.0 450 1.05 5
GBJL35M GBJL 1000 35.0 450 1.05 5
GBJL6J GBJL 600 6.0 120 0.98 5
GBJL6JU GBJL 600 6.0 180 1.10 5
GBJL6K GBJL 800 6.0 120 0.98 5
GBJL6KU GBJL 800 6.0 180 1.10 5
GBJL6M GBJL 1000 6.0 120 0.98 5
GBJL6MU GBJL 1000 6.0 180 1.10 5
GBJL8J GBJL 600 8.0 150 0.98 5
GBJL8K GBJL 800 8.0 150 0.98 5
GBJL8M GBJL 1000 8.0 150 0.98 5
GBL005 GBL(2S) 50 4.0 150 1.00 10
GBL01 GBL(2S) 100 4.0 150 1.00 10
GBL02 GBL(2S) 200 4.0 150 1.00 10
GBL04 GBL(2S) 400 4.0 150 1.00 10
GBL06 GBL(2S) 600 4.0 150 1.00 10
GBL08 GBL(2S) 800 4.0 150 1.00 10
GBL10 GBL(2S) 1000 4.0 150 1.00 10
GBL2A GBL(2S) 50 2.0 65 1.00 5
GBL2B GBL(2S) 100 2.0 65 1.00 5
GBL2D GBL(2S) 200 2.0 65 1.00 5
GBL2G GBL(2S) 400 2.0 65 1.00 5
GBL2J GBL(2S) 600 2.0 65 1.00 5
GBL2K GBL(2S) 800 2.0 65 1.00 5
GBL2M GBL(2S) 1000 2.0 65 1.00 5
GBP2005 GBP 50 2.0 50 1.10 10
GBP201 GBP 100 2.0 50 1.10 10
GBP202 GBP 200 2.0 50 1.10 10
GBP204 GBP 400 2.0 50 1.10 10
GBP206 GBP 600 2.0 50 1.10 10
GBP208 GBP 800 2.0 50 1.10 10
GBP210 GBP 1000 2.0 50 1.10 10
GBPC35005 GBPC 50 35.0 400 1.10 10
GBPC35005W GBPC-W 50 35.0 400 1.10 10
GBPC3501 GBPC 100 35.0 400 1.10 10
GBPC3501W GBPC-W 100 35.0 400 1.10 10
GBPC3502 GBPC 200 35.0 400 1.10 10
GBPC3502W GBPC-W 200 35.0 400 1.10 10
GBPC3504 GBPC 400 35.0 400 1.10 10
GBPC3504W GBPC-W 400 35.0 400 1.10 10
GBPC3506 GBPC 600 35.0 400 1.10 10
GBPC3506W GBPC-W 600 35.0 400 1.10 10
GBPC3508 GBPC 800 35.0 400 1.10 10
GBPC3508W GBPC-W 800 35.0 400 1.10 10
GBPC3510 GBPC 1000 35.0 400 1.10 10
GBPC3510W GBPC-W 1000 35.0 400 1.10 10
GBPC3512 GBPC 1200 35.0 400 1.10 10
GBPC3512W GBPC-W 1200 35.0 400 1.10 10
GBPC50005 GBPC 50 50.0 500 1.10 10
GBPC50005-W GBPC-W 50 50.0 500 1.10 10
GBPC5001 GBPC 100 50.0 500 1.10 10
GBPC5001-W GBPC-W 100 50.0 500 1.10 10
GBPC5002 GBPC 200 50.0 500 1.10 10
GBPC5002-W GBPC-W 200 50.0 500 1.10 10
GBPC5004 GBPC 400 50.0 500 1.10 10
GBPC5004-W GBPC-W 400 50.0 500 1.10 10
GBPC5006 GBPC 600 50.0 500 1.10 10
GBPC5006-W GBPC-W 600 50.0 500 1.10 10
GBPC5008 GBPC 800 50.0 500 1.10 10
GBPC5008-W GBPC-W 800 50.0 500 1.10 10
GBPC5010 GBPC 1000 50.0 500 1.10 10
GBPC5010-W GBPC-W 1000 50.0 500 1.10 10
GBU1001 GBU 100 10.0 220 1.10 10
GBU1002 GBU 200 10.0 220 1.10 10
GBU1004 GBU 400 10.0 220 1.10 10
GBU1006 GBU 600 10.0 220 1.10 10
GBU1008 GBU 800 10.0 220 1.10 10
GBU1010 GBU 1000 10.0 220 1.10 10
GBU25005 GBU 50 25.0 350 1.10 10
GBU2501 GBU 100 25.0 350 1.10 10
GBU2502 GBU 200 25.0 350 1.10 10
GBU2504 GBU 400 25.0 350 1.10 10
GBU2506 GBU 600 25.0 350 1.10 10
GBU2508 GBU 800 25.0 350 1.10 10
GBU2510 GBU 1000 25.0 350 1.10 10
GBU4005 GBU 50 4.0 150 1.00 5
GBU401 GBU 100 4.0 150 1.00 5
GBU402 GBU 200 4.0 150 1.00 5
GBU404 GBU 400 4.0 150 1.00 5
GBU406 GBU 600 4.0 150 1.00 5
GBU408 GBU 800 4.0 150 1.00 5
GBU410 GBU 1000 4.0 150 1.00 5
GBU4A GBU 50 4.0 150 1.00 5
GBU4B GBU 100 4.0 150 1.00 5
GBU4D GBU 200 4.0 150 1.00 5
GBU4G GBU 400 4.0 150 1.00 5
GBU4J GBU 600 4.0 150 1.00 5
GBU4K GBU 800 4.0 150 1.00 5
GBU4M GBU 1000 4.0 150 1.00 5
GBU6005 GBU 50 6.0 150 1.00 5
GBU601 GBU 100 6.0 150 1.00 5
GBU602 GBU 200 6.0 150 1.00 5
GBU604 GBU 400 6.0 150 1.00 5
GBU606 GBU 600 6.0 150 1.00 5
GBU608 GBU 800 6.0 150 1.00 5
GBU610 GBU 1000 6.0 150 1.00 5
GBU6A GBU 50 6.0 175 1.00 5
GBU6B GBU 100 6.0 175 1.00 5
GBU6D GBU 200 6.0 175 1.00 5
GBU6G GBU 400 6.0 175 1.00 5
GBU6J GBU 600 6.0 175 1.00 5
GBU6K GBU 800 6.0 175 1.00 5
GBU6M GBU 1000 6.0 175 1.00 5
GBU8005 GBU 50 8.0 200 1.00 5
GBU801 GBU 100 8.0 200 1.00 5
GBU802 GBU 200 8.0 200 1.00 5
GBU804 GBU 400 8.0 200 1.00 5
GBU806 GBU 600 8.0 200 1.00 5
GBU808 GBU 800 8.0 200 1.00 5
GBU810 GBU 1000 8.0 200 1.00 5
GBU8A GBU 50 8.0 200 1.00 5
GBU8B GBU 100 8.0 200 1.00 5
GBU8D GBU 200 8.0 200 1.00 5
GBU8G GBU 400 8.0 200 1.00 5
GBU8J GBU 600 8.0 200 1.00 5
GBU8K GBU 800 8.0 200 1.00 5
GBU8M GBU 1000 8.0 200 1.00 5
GKBJ10A KBJ 50 10.0 180 1.00 5
GKBJ10B KBJ 100 10.0 180 1.00 5
GKBJ10D KBJ 200 10.0 180 1.00 5
GKBJ10G KBJ 400 10.0 180 1.00 5
GKBJ10J KBJ 600 10.0 180 1.00 5
GKBJ10K KBJ 800 10.0 180 1.00 5
GKBJ10M KBJ 1000 10.0 180 1.00 5
GL1506 GBJ(5S) 600 15.0 350 0.90 5
GL1506A GBJ(5S) 600 15.0 240 0.93 5
GL1506B GBJ(5S) 600 15.0 280 0.91 5
GL1508 GBJ(5S) 800 15.0 350 0.90 5
GL1508A GBJ(5S) 800 15.0 240 0.93 5
GL1508B GBJ(5S) 800 15.0 280 0.91 5
GL2506-T2 GBJ(5S) 600 25.0 450 0.92 10
GL2508-T2 GBJ(5S) 800 25.0 450 0.92 10
GLV1506 GBJ(5S) 600 15.0 400 0.89 5
GLV1508 GBJ(5S) 800 15.0 400 0.89 5
GSABS1 ABS 100 1.0 30 0.95 5
GSABS10 ABS 1000 1.0 30 0.95 5
GSABS2 ABS 200 1.0 30 0.95 5
GSABS202 ABS 200 2.0 60 1.10 10
GSABS202S ABS 200 2.0 60 0.95 5
GSABS204 ABS 400 2.0 60 1.10 10
GSABS204S ABS 400 2.0 60 0.95 5
GSABS206 ABS 600 2.0 60 1.10 10
GSABS206S ABS 600 2.0 60 0.95 5
GSABS208 ABS 800 2.0 60 1.10 10
GSABS208S ABS 800 2.0 60 0.95 5
GSABS210 ABS 1000 2.0 60 1.10 10
GSABS210S ABS 1000 2.0 60 0.95 5
GSABS4 ABS 400 1.0 30 0.95 5
GSABS6 ABS 600 1.0 30 0.95 5
GSABS8 ABS 800 1.0 30 0.95 5
GSB10F MBF 1000 0.8 30 1.10 5
GSB2F MBF 200 0.8 30 1.10 5
GSB4F MBF 400 0.8 30 1.10 5
GSB6F MBF 600 0.8 30 1.10 5
GSB8F MBF 800 0.8 30 1.10 5
GSBG02K6J K6 600 2.0 60 0.96 5
GSBG02K6K K6 800 2.0 60 0.96 5
GSBG02K6M K6 1000 2.0 60 0.96 5
GSDB201S DBS 50 2.0 60 1.10 10
GSDB202S DBS 100 2.0 60 1.10 10
GSDB203S DBS 200 2.0 60 1.10 10
GSDB204S DBS 400 2.0 60 1.10 10
GSDB205S DBS 600 2.0 60 1.10 10
GSDB206S DBS 800 2.0 60 1.10 10
GSDB207S DBS 1000 2.0 60 1.10 10
GSDBF30005A DBF 50 3.0 120 1.00 5
GSDBF3001A DBF 100 3.0 120 1.00 5
GSDBF3002A DBF 200 3.0 120 1.00 5
GSDBF3004A DBF 400 3.0 120 1.00 5
GSDBF3006A DBF 600 3.0 120 1.00 5
GSDBF3008A DBF 800 3.0 120 1.00 5
GSDBF3010A DBF 1000 3.0 120 1.00 5
GSGBJ1501 GBJ 100 15.0 220 1.00 5
GSGBJ1502 GBJ 200 15.0 220 1.00 5
GSGBJ1504 GBJ 400 15.0 220 1.00 5
GSGBJ1506 GBJ 600 15.0 220 1.00 5
GSGBJ1508 GBJ 800 15.0 220 1.00 5
GSGBJ1510 GBJ 1000 15.0 220 1.00 5
GSGBJ50005H GBJ 50 50.0 450 1.10 10
GSGBJ5001H GBJ 100 50.0 450 1.10 10
GSGBJ5002H GBJ 200 50.0 450 1.10 10
GSGBJ5004H GBJ 400 50.0 450 1.10 10
GSGBJ5006H GBJ 600 50.0 450 1.10 10
GSGBJ5008H GBJ 800 50.0 450 1.10 10
GSGBJ5010H GBJ 1000 50.0 450 1.10 10
GSJBF410 BF 1000 4.0 140 1.00 5
GSKBJ2001 4KBJ 100 20.0 260 1.10 5
GSKBJ2002 4KBJ 200 20.0 260 1.10 5
GSKBJ2004 4KBJ 400 20.0 260 1.10 5
GSKBJ2006 4KBJ 600 20.0 260 1.10 5
GSKBJ2008 4KBJ 800 20.0 260 1.10 5
GSKBJ2010 4KBJ 1000 20.0 260 1.10 5
GSMB10S MBS 1000 0.8 30 1.00 5
GSMB1S MBS 100 0.8 30 1.00 5
GSMB2S MBS 200 0.8 30 1.00 5
GSMB4S MBS 400 0.8 30 1.00 5
GSMB6S MBS 600 0.8 30 1.00 5
GSMB8S MBS 800 0.8 30 1.00 5
KBF201 KBF 100 2.0 60 0.95 5
KBF202 KBF 200 2.0 60 0.95 5
KBF204 KBF 400 2.0 60 0.95 5
KBF206 KBF 600 2.0 60 0.95 5
KBF208 KBF 800 2.0 60 0.95 5
KBF210 KBF 1000 2.0 60 0.95 5
KBF301 KBF 100 3.0 80 0.95 5
KBF302 KBF 200 3.0 80 0.95 5
KBF304 KBF 400 3.0 80 0.95 5
KBF306 KBF 600 3.0 80 0.95 5
KBF308 KBF 800 3.0 80 0.95 5
KBF310 KBF 1000 3.0 80 0.95 5
KBF401 KBF 100 4.0 130 1.00 5
KBF402 KBF 200 4.0 130 1.00 5
KBF404 KBF 400 4.0 130 1.00 5
KBF406 KBF 600 4.0 130 1.00 5
KBF408 KBF 800 4.0 130 1.00 5
KBF410 KBF 1000 4.0 130 1.00 5
KBJ4A KBJ(3S) 50 4.0 80 1.00 5
KBJ4AU KBJ(3S) 50 4.0 120 1.00 5
KBJ4AV KBJ(3S) 50 4.0 150 1.00 5
KBJ4B KBJ(3S) 100 4.0 80 1.00 5
KBJ4BU KBJ(3S) 100 4.0 120 1.00 5
KBJ4BV KBJ(3S) 100 4.0 150 1.00 5
KBJ4D KBJ(3S) 200 4.0 80 1.00 5
KBJ4DU KBJ(3S) 200 4.0 120 1.00 5
KBJ4DV KBJ(3S) 200 4.0 150 1.00 5
KBJ4G KBJ(3S) 400 4.0 80 1.00 5
KBJ4GU KBJ(3S) 400 4.0 120 1.00 5
KBJ4GV KBJ(3S) 400 4.0 150 1.00 5
KBJ4J KBJ(3S) 600 4.0 80 1.00 5
KBJ4JU KBJ(3S) 600 4.0 120 1.00 5
KBJ4JV KBJ(3S) 600 4.0 150 1.00 5
KBJ4K KBJ(3S) 800 4.0 80 1.00 5
KBJ4KU KBJ(3S) 800 4.0 120 1.00 5
KBJ4KV KBJ(3S) 800 4.0 150 1.00 5
KBJ4M KBJ(3S) 1000 4.0 80 1.00 5
KBJ4MU KBJ(3S) 1000 4.0 120 1.00 5
KBJ4MV KBJ(3S) 1000 4.0 150 1.00 5
KBJL10J KBJL 600 10.0 180 0.98 5
KBJL10JA KBJL 600 10.0 120 1.05 5
KBJL10K KBJL 800 10.0 180 0.98 5
KBJL10KA KBJL 800 10.0 120 1.05 5
KBJL10M KBJL 1000 10.0 180 0.98 5
KBJL10MA KBJL 1000 10.0 120 1.05 5
KBJL15J KBJL 600 15.0 240 1.00 5
KBJL15K KBJL 800 15.0 240 1.00 5
KBJL15M KBJL 1000 15.0 240 1.00 5
KBJL4J KBJL 600 4.0 90 0.96 5
KBJL4J-C KBJL-C 600 4.0 90 0.96 5
KBJL4JU KBJL 600 4.0 120 0.96 5
KBJL4JU-C KBJL-C 600 4.0 120 0.96 5
KBJL4JV KBJL 600 4.0 150 0.96 5
KBJL4K KBJL 800 4.0 90 0.96 5
KBJL4K-C KBJL-C 800 4.0 90 0.96 5
KBJL4KU KBJL 800 4.0 120 0.96 5
KBJL4KU-C KBJL-C 800 4.0 120 0.96 5
KBJL4KV KBJL 800 4.0 150 0.96 5
KBJL4M KBJL 1000 4.0 90 0.96 5
KBJL4M-C KBJL-C 1000 4.0 90 0.96 5
KBJL4MU KBJL 1000 4.0 120 0.96 5
KBJL4MU-C KBJL-C 1000 4.0 120 0.96 5
KBJL4MV KBJL 1000 4.0 150 0.96 5
KBJL6J KBJL 600 6.0 120 0.96 5
KBJL6JA KBJL 600 6.0 90 1.00 5
KBJL6JU KBJL 600 6.0 150 0.96 5
KBJL6K KBJL 800 6.0 120 0.96 5
KBJL6KA KBJL 800 6.0 90 1.00 5
KBJL6KU KBJL 800 6.0 150 0.96 5
KBJL6M KBJL 1000 6.0 120 0.96 5
KBJL6MA KBJL 1000 6.0 90 1.00 5
KBJL6MU KBJL 1000 6.0 150 0.96 5
KBJL8J KBJL 600 8.0 180 0.96 5
KBJL8K KBJL 800 8.0 180 0.96 5
KBJL8M KBJL 1000 8.0 180 0.96 5
KBL005 KBL 50 4.0 200 1.10 5
KBL01 KBL 100 4.0 200 1.10 5
KBL02 KBL 200 4.0 200 1.10 5
KBL04 KBL 400 4.0 200 1.10 5
KBL06 KBL 600 4.0 200 1.10 5
KBL08 KBL 800 4.0 200 1.10 5
KBL10 KBL 1000 4.0 200 1.10 5
KBL60005 KBL 50 6.0 135 1.05 10
KBL601 KBL 100 6.0 135 1.05 10
KBL602 KBL 200 6.0 135 1.05 10
KBL604 KBL 400 6.0 135 1.05 10
KBL606 KBL 600 6.0 135 1.05 10
KBL608 KBL 800 6.0 135 1.05 10
KBL610 KBL 1000 6.0 135 1.05 10
KBPC10005 KBPC 50 10.0 220 1.10 10
KBPC10005W KBPC-W 50 10.0 220 1.10 10
KBPC1001 KBPC 100 10.0 220 1.10 10
KBPC1001W KBPC-W 100 10.0 220 1.10 10
KBPC1002 KBPC 200 10.0 220 1.10 10
KBPC1002W KBPC-W 200 10.0 220 1.10 10
KBPC1004 KBPC 400 10.0 220 1.10 10
KBPC1004W KBPC-W 400 10.0 220 1.10 10
KBPC1006 KBPC 600 10.0 220 1.10 10
KBPC1006W KBPC-W 600 10.0 220 1.10 10
KBPC1008 KBPC 800 10.0 220 1.10 10
KBPC1008W KBPC-W 800 10.0 220 1.10 10
KBPC1010 KBPC 1000 10.0 220 1.10 10
KBPC1010W KBPC-W 1000 10.0 220 1.10 10
KBPC15005 KBPC 50 15.0 300 1.10 10
KBPC15005W KBPC-W 50 15.0 300 1.10 10
KBPC1501 KBPC 100 15.0 300 1.10 10
KBPC1501W KBPC-W 100 15.0 300 1.10 10
KBPC1502 KBPC 200 15.0 300 1.10 10
KBPC1502W KBPC-W 200 15.0 300 1.10 10
KBPC1504 KBPC 400 15.0 300 1.10 10
KBPC1504W KBPC-W 400 15.0 300 1.10 10
KBPC1506 KBPC 600 15.0 300 1.10 10
KBPC1506W KBPC-W 600 15.0 300 1.10 10
KBPC1508 KBPC 800 15.0 300 1.10 10
KBPC1508W KBPC-W 800 15.0 300 1.10 10
KBPC1510 KBPC 1000 15.0 300 1.10 10
KBPC1510W KBPC-W 1000 15.0 300 1.10 10
KBPC25005 KBPC 50 25.0 400 1.10 10
KBPC25005W KBPC-W 50 25.0 400 1.10 10
KBPC2501 KBPC 100 25.0 400 1.10 10
KBPC2501W KBPC-W 100 25.0 400 1.10 10
KBPC2502 KBPC 200 25.0 400 1.10 10
KBPC2502W KBPC-W 200 25.0 400 1.10 10
KBPC2504 KBPC 400 25.0 400 1.10 10
KBPC2504W KBPC-W 400 25.0 400 1.10 10
KBPC2506 KBPC 600 25.0 400 1.10 10
KBPC2506W KBPC-W 600 25.0 400 1.10 10
KBPC2508 KBPC 800 25.0 400 1.10 10
KBPC2508W KBPC-W 800 25.0 400 1.10 10
KBPC2510 KBPC 1000 25.0 400 1.10 10
KBPC2510W KBPC-W 1000 25.0 400 1.10 10
KBPC35005 KBPC 50 35.0 400 1.10 10
KBPC35005W KBPC-W 50 35.0 400 1.10 10
KBPC3501 KBPC 100 35.0 400 1.10 10
KBPC3501W KBPC-W 100 35.0 400 1.10 10
KBPC3502 KBPC 200 35.0 400 1.10 10
KBPC3502W KBPC-W 200 35.0 400 1.10 10
KBPC3504 KBPC 400 35.0 400 1.10 10
KBPC3504W KBPC-W 400 35.0 400 1.10 10
KBPC3506 KBPC 600 35.0 400 1.10 10
KBPC3506W KBPC-W 600 35.0 400 1.10 10
KBPC3508 KBPC 800 35.0 400 1.10 10
KBPC3508W KBPC-W 800 35.0 400 1.10 10
KBPC3510 KBPC 1000 35.0 400 1.10 10
KBPC3510W KBPC-W 1000 35.0 400 1.10 10
KBPC5001 KBPC 100 50.0 500 1.10 10
KBPC5001W KBPC-W 100 50.0 500 1.10 10
KBPC5002 KBPC 200 50.0 500 1.10 10
KBPC5002W KBPC-W 200 50.0 500 1.10 10
KBPC5004 KBPC 400 50.0 500 1.10 10
KBPC5004W KBPC-W 400 50.0 500 1.10 10
KBPC5005 KBPC 50 50.0 500 1.10 10
KBPC5005W KBPC-W 50 50.0 500 1.10 10
KBPC5006 KBPC 600 50.0 500 1.10 10
KBPC5006W KBPC-W 600 50.0 500 1.10 10
KBPC5008 KBPC 800 50.0 500 1.10 10
KBPC5008W KBPC-W 800 50.0 500 1.10 10
KBPC5010 KBPC 1000 50.0 500 1.10 10
KBPC5010W KBPC-W 1000 50.0 500 1.10 10
KBPC6005 KBPC 50 6.0 125 1.00 10
KBPC601 KBPC 100 6.0 125 1.00 10
KBPC602 KBPC 200 6.0 125 1.00 10
KBPC604 KBPC 400 6.0 125 1.00 10
KBPC606 KBPC 600 6.0 125 1.00 10
KBPC608 KBPC 800 6.0 125 1.00 10
KBPC610 KBPC 1000 6.0 125 1.00 10
KBPC8005 KBPC 50 8.0 125 1.10 10
KBPC801 KBPC 100 8.0 125 1.10 10
KBPC802 KBPC 200 8.0 125 1.10 10
KBPC804 KBPC 400 8.0 125 1.10 10
KBPC806 KBPC 600 8.0 125 1.10 10
KBPC808 KBPC 800 8.0 125 1.10 10
KBPC810 KBPC 1000 8.0 125 1.10 10
KBU10005 KBU 50 10.0 170 1.10 10
KBU1001 KBU 100 10.0 170 1.10 10
KBU1002 KBU 200 10.0 170 1.10 10
KBU1004 KBU 400 10.0 170 1.10 10
KBU1006 KBU 600 10.0 170 1.10 10
KBU1008 KBU 800 10.0 170 1.10 10
KBU1010 KBU 1000 10.0 170 1.10 10
KBU25005 KBU 50 25.0 400 1.10 10
KBU2501 KBU 100 25.0 400 1.10 10
KBU2502 KBU 200 25.0 400 1.10 10
KBU2504 KBU 400 25.0 400 1.10 10
KBU2506 KBU 600 25.0 400 1.10 10
KBU2508 KBU 800 25.0 400 1.10 10
KBU2510 KBU 1000 25.0 400 1.10 10
KBU35005 KBU 50 35.0 400 1.10 10
KBU3501 KBU 100 35.0 400 1.10 10
KBU3502 KBU 200 35.0 400 1.10 10
KBU3504 KBU 400 35.0 400 1.10 10
KBU3506 KBU 600 35.0 400 1.10 10
KBU3508 KBU 800 35.0 400 1.10 10
KBU3510 KBU 1000 35.0 400 1.10 10
KBU4A KBU 50 4.0 200 1.00 5
KBU4B KBU 100 4.0 200 1.00 5
KBU4D KBU 200 4.0 200 1.00 5
KBU4G KBU 400 4.0 200 1.00 5
KBU4J KBU 600 4.0 200 1.00 5
KBU4K KBU 800 4.0 200 1.00 5
KBU4M KBU 1000 4.0 200 1.00 5
KBU6A KBU 50 6.0 250 1.00 5
KBU6B KBU 100 6.0 250 1.00 5
KBU6D KBU 200 6.0 250 1.00 5
KBU6G KBU 400 6.0 250 1.00 5
KBU6J KBU 600 6.0 250 1.00 5
KBU6K KBU 800 6.0 250 1.00 5
KBU6M KBU 1000 6.0 250 1.00 5
KBU8A KBU 50 8.0 200 1.00 10
KBU8B KBU 100 8.0 200 1.00 10
KBU8D KBU 200 8.0 200 1.00 10
KBU8G KBU 400 8.0 200 1.00 10
KBU8J KBU 600 8.0 200 1.00 10
KBU8K KBU 800 8.0 200 1.00 10
KBU8M KBU 1000 8.0 200 1.00 10
LB10S ABF 1000 0.8 35 0.95 5
LB10SL ABF 1000 1.0 30 1.00 10
LB1510SL ABF 1000 1.5 50 1.10 10
LB151SL ABF 100 1.5 50 1.10 10
LB152SL ABF 200 1.5 50 1.10 10
LB154SL ABF 400 1.5 50 1.10 10
LB156SL ABF 600 1.5 50 1.10 10
LB158SL ABF 800 1.5 50 1.10 10
LB1S ABF 100 0.8 35 0.95 5
LB1SL ABF 100 1.0 30 1.00 10
LB2010S ABF 1000 2.0 60 1.10 5
LB201S ABF 100 2.0 60 1.10 5
LB202S ABF 200 2.0 60 1.10 5
LB204S ABF 400 2.0 60 1.10 5
LB206S ABF 600 2.0 60 1.10 5
LB208S ABF 800 2.0 60 1.10 5
LB2S ABF 200 0.8 35 0.95 5
LB2SL ABF 200 1.0 30 1.00 10
LB4S ABF 400 0.8 35 0.95 5
LB4SL ABF 400 1.0 30 1.00 10
LB6S ABF 600 0.8 35 0.95 5
LB6SL ABF 600 1.0 30 1.00 10
LB8S ABF 800 0.8 35 0.95 5
LB8SL ABF 800 1.0 30 1.00 10
LBR1510S ABF 1000 1.5 50 1.30 5
LBR151S ABF 100 1.5 50 1.30 5
LBR152S ABF 200 1.5 50 1.30 5
LBR154S ABF 400 1.5 50 1.30 5
LBR156S ABF 600 1.5 50 1.30 5
LBR158S ABF 800 1.5 50 1.30 5
LM02 LPMB 200 0.5 35 1.00 5
LM04 LPMB 400 0.5 35 1.00 5
LM06 LPMB 600 0.5 35 1.00 5
LM08 LPMB 800 0.5 35 1.00 5
LM10 LPMB 1000 0.5 35 1.00 5
LMD02 LPMB 200 0.5 30 1.00 5
LMD04 LPMB 400 0.5 30 1.00 5
LMD06 LPMB 600 0.5 30 1.00 5
LMD08 LPMB 800 0.5 30 1.00 5
LMD10 LPMB 1000 0.5 30 1.00 5
MB10F MBF 1000 1.0 35 1.10 5
MB10M MBM 1000 0.5 35 1.00 5
MB10MT MBM 1000 0.5 30 1.00 5
MB10S TO-269AA(MBS) 1000 0.5 35 1.00 5
MB10SA TO-269AA(MBS) 1000 0.5 25 1.00 5
MB10SHF TO-269AA(MBS) 1000 0.5 35 1.00 5
MB10ST TO-269AA(MBS) 1000 0.5 30 1.00 5
MB12S TO-269AA(MBS) 1200 0.5 35 1.00 5
MB12SHF TO-269AA(MBS) 1200 0.5 35 1.00 5
MB151M MBM 50 1.5 50 1.10 5
MB151S TO-269AA(MBS) 50 1.5 50 1.10 5
MB152M MBM 100 1.5 50 1.10 5
MB152S TO-269AA(MBS) 100 1.5 50 1.10 5
MB153M MBM 200 1.5 50 1.10 5
MB153S TO-269AA(MBS) 200 1.5 50 1.10 5
MB154M MBM 400 1.5 50 1.10 5
MB154S TO-269AA(MBS) 400 1.5 50 1.10 5
MB155M MBM 600 1.5 50 1.10 5
MB155S TO-269AA(MBS) 600 1.5 50 1.10 5
MB156M MBM 800 1.5 50 1.10 5
MB156S TO-269AA(MBS) 800 1.5 50 1.10 5
MB157M MBM 1000 1.5 50 1.10 5
MB157S TO-269AA(MBS) 1000 1.5 50 1.10 5
MB1F MBF 100 1.0 35 1.10 5
MB2F MBF 200 1.0 35 1.10 5
MB2M MBM 200 0.5 35 1.00 5
MB2MT MBM 200 0.5 30 1.00 5
MB2S TO-269AA(MBS) 200 0.5 35 1.00 5
MB2SA TO-269AA(MBS) 200 0.5 25 1.00 5
MB2SHF TO-269AA(MBS) 200 0.5 35 1.00 5
MB2ST TO-269AA(MBS) 200 0.5 30 1.00 5
MB4F MBF 400 1.0 35 1.10 5
MB4M MBM 400 0.5 35 1.00 5
MB4MT MBM 400 0.5 30 1.00 5
MB4S TO-269AA(MBS) 400 0.5 35 1.00 5
MB4SA TO-269AA(MBS) 400 0.5 25 1.00 5
MB4SHF TO-269AA(MBS) 400 0.5 35 1.00 5
MB4ST TO-269AA(MBS) 400 0.5 30 1.00 5
MB6F MBF 600 1.0 35 1.10 5
MB6M MBM 600 0.5 35 1.00 5
MB6MT MBM 600 0.5 30 1.00 5
MB6S TO-269AA(MBS) 600 0.5 35 1.00 5
MB6SA TO-269AA(MBS) 600 0.5 25 1.00 5
MB6SHF TO-269AA(MBS) 600 0.5 35 1.00 5
MB6ST TO-269AA(MBS) 600 0.5 30 1.00 5
MB8F MBF 800 1.0 35 1.10 5
MB8M MBM 800 0.5 35 1.00 5
MB8MT MBM 800 0.5 30 1.00 5
MB8S TO-269AA(MBS) 800 0.5 35 1.00 5
MB8SA TO-269AA(MBS) 800 0.5 25 1.00 5
MB8SHF TO-269AA(MBS) 800 0.5 35 1.00 5
MB8ST TO-269AA(MBS) 800 0.5 30 1.00 5
MF10M MBM 1000 1.0 40 1.10 5
MF10S TO-269AA(MBS) 1000 1.0 40 1.10 5
MF2M MBM 200 1.0 40 1.10 5
MF2S TO-269AA(MBS) 200 1.0 40 1.10 5
MF4M MBM 400 1.0 40 1.10 5
MF4S TO-269AA(MBS) 400 1.0 40 1.10 5
MF6M MBM 600 1.0 40 1.10 5
MF6S TO-269AA(MBS) 600 1.0 40 1.10 5
MF8M MBM 800 1.0 40 1.10 5
MF8S TO-269AA(MBS) 800 1.0 40 1.10 5
RS101 RS 50 1.0 50 1.00 10
RS102 RS 100 1.0 50 1.00 10
RS103 RS 200 1.0 50 1.00 10
RS104 RS 400 1.0 50 1.00 10
RS105 RS 600 1.0 50 1.00 10
RS106 RS 800 1.0 50 1.00 10
RS107 RS 1000 1.0 50 1.00 10
RS201 RS 50 2.0 50 1.10 10
RS202 RS 100 2.0 50 1.10 10
RS203 RS 200 2.0 50 1.10 10
RS204 RS 400 2.0 50 1.10 10
RS205 RS 600 2.0 50 1.10 10
RS206 RS 800 2.0 50 1.10 10
RS207 RS 1000 2.0 50 1.10 10
RS6005 KBU 50 6.0 135 1.10 10
RS601 KBU 100 6.0 135 1.10 10
RS602 KBU 200 6.0 135 1.10 10
RS604 KBU 400 6.0 135 1.10 10
RS606 KBU 600 6.0 135 1.10 10
RS608 KBU 800 6.0 135 1.10 10
RS610 KBU 1000 6.0 135 1.10 10
U05B4B48 TO-269AA(MBS) 100 0.5 30 1.00 10
U05G4B48 TO-269AA(MBS) 400 0.5 30 1.00 10
U05GU4B48 TO-269AA(MBS) 400 0.5 30 0.65 100
U05J4B48 TO-269AA(MBS) 600 0.5 30 1.00 10
W005G WOB 50 1.5 50 1.00 10
W01G WOB 100 1.5 50 1.00 10
W02G WOB 200 1.5 50 1.00 10
W04G WOB 400 1.5 50 1.00 10
W06G WOB 600 1.5 50 1.00 10
W08G WOB 800 1.5 50 1.00 10
W10G WOB 1000 1.5 50 1.00 10
Part Number
from   to
Apply Filter
Clear Filter
Close Filter
Data
Sheet
from   to
Apply Filter
Clear Filter
Close Filter
Package
from   to
Apply Filter
Clear Filter
Close Filter
VRWM
(V)
from   to
Apply Filter
Clear Filter
Close Filter
IF (AV)
(A)
from   to
Apply Filter
Clear Filter
Close Filter
IFSM
(A)
from   to
Apply Filter
Clear Filter
Close Filter
VF
(V)
from   to
Apply Filter
Clear Filter
Close Filter
IR
(uA)
from   to
Apply Filter
Clear Filter
Close Filter

Free samples available for immediate testing

Call (+1) 631-319-1858 or email [email protected]

Contact Us
