Rectifiers

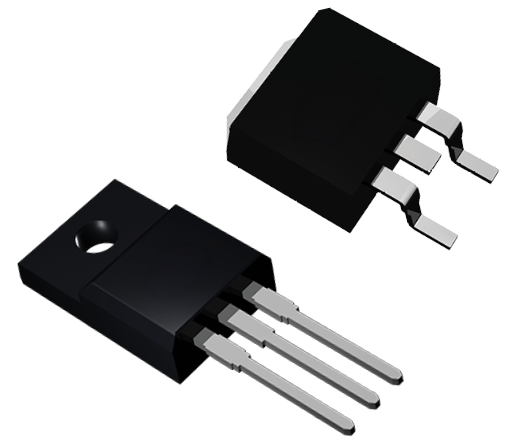

Ultra Fast Recovery High Efficiency Rectifiers
| Part Number |
Data Sheet |
Package |
VRRM (V) |
IF (AV) (A) |
IFSM (A) |
VF (V) |
IR (uA) |
trr (nS) |
|---|---|---|---|---|---|---|---|---|
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
||
Clear All Filters |
||||||||
| FH1 |
|
SOD-123FL | 50 | 1.0 | 30 | 1.30 | 5 | 50 |
| FH2 |
|
SOD-123FL | 100 | 1.0 | 30 | 1.30 | 5 | 50 |
| FH3 |
|
SOD-123FL | 200 | 1.0 | 30 | 1.30 | 5 | 50 |
| FH4 |
|
SOD-123FL | 400 | 1.0 | 30 | 1.30 | 5 | 50 |
| FH5 |
|
SOD-123FL | 600 | 1.0 | 30 | 1.70 | 5 | 75 |
| FH6 |
|
SOD-123FL | 800 | 1.0 | 30 | 1.70 | 5 | 75 |
| FH7 |
|
SOD-123FL | 1000 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSEGP10A |
|
DO-204AL (DO-41) | 50 | 1.0 | 30 | 0.95 | 5 | 50 |
| GSEGP10B |
|
DO-204AL (DO-41) | 100 | 1.0 | 30 | 0.95 | 5 | 50 |
| GSEGP10C |
|
DO-204AL (DO-41) | 150 | 1.0 | 30 | 0.95 | 5 | 50 |
| GSEGP10D |
|
DO-204AL (DO-41) | 200 | 1.0 | 30 | 0.95 | 5 | 50 |
| GSEGP10F |
|
DO-204AL (DO-41) | 300 | 1.0 | 30 | 1.25 | 5 | 50 |
| GSEGP10G |
|
DO-204AL (DO-41) | 400 | 1.0 | 30 | 1.25 | 5 | 50 |
| GSH108BF |
|
SMBF | 1200 | 1.0 | 30 | 1.90 | 5 | 75 |
| GSH1A |
|
SOD-123FL | 50 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSH1B |
|
SOD-123FL | 100 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSH1D |
|
SOD-123FL | 200 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSH1G |
|
SOD-123FL | 400 | 1.0 | 30 | 1.30 | 5 | 50 |
| GSH1J |
|
SOD-123FL | 600 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSH1K |
|
SOD-123FL | 800 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSH1M |
|
SOD-123FL | 1000 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSH1MA16 |
|
DO-214AC (SMA) | 1600 | 1.0 | 30 | 2.10 | 3 | 75 |
| GSH3MB12 |
|
DO-214AA (SMB) | 1200 | 3.0 | 80 | 2.00 | 5 | 75 |
| GSHS1OB |
|
DO-214AA (SMB) | 1200 | 1.0 | 30 | 1.90 | 5 | 75 |
| GSHS1OC |
|
DO-214AB (SMC) | 1200 | 1.0 | 30 | 1.90 | 5 | 75 |
| GSHS1Q |
|
DO-214AC (SMA) | 1300 | 1.0 | 20 | 3.00 | 5 | 75 |
| GSMUR10060P |
|
TO-247AC | 600 | 100.0 | 860 | 1.80 | 5 | 95 |
| GSMUR1540 |
|
TO-220-AC | 400 | 15.0 | 150 | 1.40 | 10 | 50 |
| GSMUR1540F |
|
ITO-220-AC | 400 | 15.0 | 150 | 1.20 | 10 | 50 |
| GSMUR3040PT |
|
TO-247AD | 400 | 30.0 | 150 | 1.40 | 10 | 50 |
| GSMUR3060 |
|
TO-220-AC | 600 | 30.0 | 300 | 1.60 | 5 | 50 |
| GSMURB1540S |
|
TO-263 (D2PAK) | 400 | 15.0 | 150 | 1.40 | 10 | 50 |
| GSMURD1540S |
|
TO-252 (DPAK) | 400 | 15.0 | 150 | 1.40 | 10 | 50 |
| GSMURS320 |
|
DO-214AB (SMC) | 200 | 3.0 | 100 | 0.920 | 5 | 35 |
| GSMURS340 |
|
DO-214AB (SMC) | 400 | 3.0 | 100 | 1.25 | 5 | 50 |
| GSMURS360 |
|
DO-214AB (SMC) | 600 | 3.0 | 100 | 1.25 | 5 | 50 |
| GSMURS440 |
|
DO-214AB (SMC) | 400 | 4.0 | 80 | 1.28 | 10 | 50 |
| GSMURS460 |
|
DO-214AB (SMC) | 600 | 4.0 | 80 | 1.28 | 10 | 50 |
| GSUS1A |
|
DO-214AC (SMA) | 50 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1AS |
|
SMAF | 50 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1B |
|
DO-214AC (SMA) | 100 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1BS |
|
SMAF | 100 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1D |
|
DO-214AC (SMA) | 200 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1DS |
|
SMAF | 200 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1F |
|
DO-214AC (SMA) | 300 | 1.0 | 30 | 1.30 | 5 | 50 |
| GSUS1FS |
|
SMAF | 300 | 1.0 | 30 | 1.00 | 5 | 50 |
| GSUS1G |
|
DO-214AC (SMA) | 400 | 1.0 | 30 | 1.30 | 5 | 50 |
| GSUS1GS |
|
SMAF | 400 | 1.0 | 30 | 1.40 | 5 | 50 |
| GSUS1J |
|
DO-214AC (SMA) | 600 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS1JS |
|
SMAF | 600 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS1K |
|
DO-214AC (SMA) | 800 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS1KS |
|
SMAF | 800 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS1M |
|
DO-214AC (SMA) | 1000 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS1MS |
|
SMAF | 1000 | 1.0 | 30 | 1.70 | 5 | 75 |
| GSUS2A |
|
DO-214AA (SMB) | 50 | 2.0 | 50 | 1.00 | 5 | 50 |
| GSUS2B |
|
DO-214AA (SMB) | 100 | 2.0 | 50 | 1.00 | 5 | 50 |
| GSUS2D |
|
DO-214AA (SMB) | 200 | 2.0 | 50 | 1.00 | 5 | 50 |
| GSUS2F |
|
DO-214AA (SMB) | 300 | 2.0 | 50 | 1.30 | 5 | 50 |
| GSUS2G |
|
DO-214AA (SMB) | 400 | 2.0 | 50 | 1.30 | 5 | 50 |
| GSUS2J |
|
DO-214AA (SMB) | 600 | 2.0 | 50 | 1.70 | 5 | 75 |
| GSUS2K |
|
DO-214AA (SMB) | 800 | 2.0 | 50 | 1.70 | 5 | 75 |
| GSUS2M |
|
DO-214AA (SMB) | 1000 | 2.0 | 50 | 1.70 | 5 | 75 |
| GSUS2MS |
|
SMAF | 1000 | 2.0 | 50 | 1.70 | 5 | 75 |
| GSUS3A |
|
DO-214AB (SMC) | 50 | 3.0 | 200 | 1.00 | 5 | 50 |
| GSUS3B |
|
DO-214AB (SMC) | 100 | 3.0 | 200 | 1.00 | 5 | 50 |
| GSUS3D |
|
DO-214AB (SMC) | 200 | 3.0 | 200 | 1.00 | 5 | 50 |
| GSUS3F |
|
DO-214AB (SMC) | 300 | 3.0 | 200 | 1.30 | 5 | 50 |
| GSUS3G |
|
DO-214AB (SMC) | 400 | 3.0 | 200 | 1.30 | 5 | 50 |
| GSUS3J |
|
DO-214AB (SMC) | 600 | 3.0 | 200 | 1.70 | 5 | 75 |
| GSUS3K |
|
DO-214AB (SMC) | 800 | 3.0 | 200 | 1.70 | 5 | 75 |
| GSUS3M |
|
DO-214AB (SMC) | 1000 | 3.0 | 200 | 1.70 | 5 | 75 |
| HER201 |
|
DO-15 (DO-204AC) | 50 | 2.0 | 60 | 1.00 | 5 | 50 |
| HER202 |
|
DO-15 (DO-204AC) | 100 | 2.0 | 60 | 1.00 | 5 | 50 |
| HER203 |
|
DO-15 (DO-204AC) | 200 | 2.0 | 60 | 1.00 | 5 | 50 |
| HER204 |
|
DO-15 (DO-204AC) | 300 | 2.0 | 60 | 1.30 | 5 | 50 |
| HER205 |
|
DO-15 (DO-204AC) | 400 | 2.0 | 60 | 1.30 | 5 | 50 |
| HER206 |
|
DO-15 (DO-204AC) | 600 | 2.0 | 60 | 1.70 | 5 | 75 |
| HER207 |
|
DO-15 (DO-204AC) | 800 | 2.0 | 60 | 1.70 | 5 | 75 |
| HER208 |
|
DO-15 (DO-204AC) | 1000 | 2.0 | 60 | 1.70 | 5 | 75 |
| HER601 |
|
P600 | 50 | 6.0 | 200 | 1.00 | 10 | 50 |
| HER601G |
|
P600 | 50 | 6.0 | 250 | 1.00 | 10 | 50 |
| HER602 |
|
P600 | 100 | 6.0 | 200 | 1.00 | 10 | 50 |
| HER602G |
|
P600 | 100 | 6.0 | 250 | 1.00 | 10 | 50 |
| HER603 |
|
P600 | 200 | 6.0 | 200 | 1.00 | 10 | 50 |
| HER603G |
|
P600 | 200 | 6.0 | 250 | 1.00 | 10 | 50 |
| HER604 |
|
P600 | 300 | 6.0 | 200 | 1.30 | 10 | 50 |
| HER604G |
|
P600 | 300 | 6.0 | 250 | 1.00 | 10 | 50 |
| HER605 |
|
P600 | 400 | 6.0 | 200 | 1.30 | 10 | 50 |
| HER605G |
|
P600 | 400 | 6.0 | 250 | 1.30 | 10 | 50 |
| HER606 |
|
P600 | 600 | 6.0 | 200 | 1.70 | 10 | 75 |
| HER606G |
|
P600 | 600 | 6.0 | 250 | 1.70 | 10 | 75 |
| HER607 |
|
P600 | 800 | 6.0 | 200 | 1.70 | 10 | 75 |
| HER607G |
|
P600 | 800 | 6.0 | 250 | 1.70 | 10 | 75 |
| HER608 |
|
P600 | 1000 | 6.0 | 200 | 1.70 | 10 | 75 |
| HER608G |
|
P600 | 1000 | 6.0 | 250 | 1.70 | 10 | 75 |
| HS1A |
|
DO-214AC (SMA) | 50 | 1.0 | 30 | 1.00 | 5 | 50 |
| HS1B |
|
DO-214AC (SMA) | 100 | 1.0 | 30 | 1.00 | 5 | 50 |
| HS1D |
|
DO-214AC (SMA) | 200 | 1.0 | 30 | 1.00 | 5 | 50 |
| HS1F |
|
DO-214AC (SMA) | 300 | 1.0 | 30 | 1.00 | 5 | 50 |
| HS1G |
|
DO-214AC (SMA) | 400 | 1.0 | 30 | 1.30 | 5 | 50 |
| HS1J |
|
DO-214AC (SMA) | 600 | 1.0 | 30 | 1.70 | 5 | 75 |
| HS1K |
|
DO-214AC (SMA) | 800 | 1.0 | 30 | 1.70 | 5 | 75 |
| HS1M |
|
DO-214AC (SMA) | 1000 | 1.0 | 30 | 1.70 | 5 | 75 |
| HS1O |
|
DO-214AC (SMA) | 1200 | 1.0 | 30 | 1.90 | 5 | 75 |
| HS1R |
|
DO-214AC (SMA) | 1400 | 1.0 | 30 | 2.10 | 5 | 75 |
| HS2A |
|
DO-214AA (SMB) | 50 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2AA |
|
DO-214AC (SMA) | 50 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2B |
|
DO-214AA (SMB) | 100 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2BA |
|
DO-214AC (SMA) | 100 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2D |
|
DO-214AA (SMB) | 200 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2DA |
|
DO-214AC (SMA) | 200 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2F |
|
DO-214AA (SMB) | 300 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2FA |
|
DO-214AC (SMA) | 300 | 1.5 | 50 | 1.00 | 5 | 50 |
| HS2G |
|
DO-214AA (SMB) | 400 | 1.5 | 50 | 1.30 | 5 | 50 |
| HS2GA |
|
DO-214AC (SMA) | 400 | 1.5 | 50 | 1.30 | 5 | 50 |
| HS2J |
|
DO-214AA (SMB) | 600 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS2JA |
|
DO-214AC (SMA) | 600 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS2K |
|
DO-214AA (SMB) | 800 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS2KA |
|
DO-214AC (SMA) | 800 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS2M |
|
DO-214AA (SMB) | 1000 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS2MA |
|
DO-214AC (SMA) | 1000 | 1.5 | 50 | 1.70 | 5 | 75 |
| HS3A |
|
DO-214AB (SMC) | 50 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3AB |
|
DO-214AA (SMB) | 50 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3B |
|
DO-214AB (SMC) | 100 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3BB |
|
DO-214AA (SMB) | 100 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3D |
|
DO-214AB (SMC) | 200 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3DB |
|
DO-214AA (SMB) | 200 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3F |
|
DO-214AB (SMC) | 300 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3FB |
|
DO-214AA (SMB) | 300 | 3.0 | 150 | 1.00 | 10 | 50 |
| HS3G |
|
DO-214AB (SMC) | 400 | 3.0 | 150 | 1.30 | 10 | 50 |
| HS3GB |
|
DO-214AA (SMB) | 400 | 3.0 | 150 | 1.30 | 10 | 50 |
| HS3J |
|
DO-214AB (SMC) | 600 | 3.0 | 150 | 1.70 | 10 | 75 |
| HS3JB |
|
DO-214AA (SMB) | 600 | 3.0 | 150 | 1.70 | 10 | 75 |
| HS3K |
|
DO-214AB (SMC) | 800 | 3.0 | 150 | 1.70 | 10 | 75 |
| HS3KB |
|
DO-214AA (SMB) | 800 | 3.0 | 150 | 1.70 | 10 | 75 |
| HS3M |
|
DO-214AB (SMC) | 1000 | 3.0 | 150 | 1.70 | 10 | 75 |
| HS3MB |
|
DO-214AA (SMB) | 1000 | 3.0 | 150 | 1.70 | 10 | 75 |
| MUR2040CT |
|
TO-220-AB | 400 | 20.0 | 125 | 1.50 | 10 | 50 |
| MUR2040FCT |
|
ITO-220-AB | 400 | 20.0 | 125 | 1.50 | 10 | 50 |
| MUR3060F |
|
ITO-220AC | 600 | 30.0 | 300 | 1.55 | 10 | 65 |
| MUR30U60PTW5 |
|
TO-3P | 600 | 30.0 | 180 | 1.80 | 10 | 50 |
| MUR440 |
|
DO-201AD | 400 | 4.0 | 125 | 1.05 | 10 | 50 |
| MUR460 |
|
DO-201AD | 600 | 4.0 | 125 | 1.05 | 10 | 50 |
| MURB1040CT |
|
TO-263 (D2PAK) | 400 | 10.0 | 90 | 1.30 | 10 | 50 |
| MURS140 |
|
DO-214AA (SMB) | 400 | 1.0 | 35 | 1.25 | 5 | 50 |
| MURS160 |
|
DO-214AA (SMB) | 600 | 1.0 | 35 | 1.25 | 5 | 50 |
| MURS440 |
|
DO-214AB (SMC) | 400 | 4.0 | 125 | 1.28 | 10 | 50 |
| MURS460 |
|
DO-214AB (SMC) | 600 | 4.0 | 125 | 1.28 | 10 | 50 |
| SMURP1040 |
|
Power QFN5x6 | 400 | 10.0 | 125 | 1.40 | 10 | 50 |
| SMURP1060 |
|
Power QFN5x6 | 600 | 10.0 | 125 | 1.60 | 10 | 50 |
| UF4001 |
|
DO-204AL (DO-41) | 50 | 1.0 | 30 | 1.00 | 10 | 50 |
| UF4002 |
|
DO-204AL (DO-41) | 100 | 1.0 | 30 | 1.00 | 10 | 50 |
| UF4003 |
|
DO-204AL (DO-41) | 200 | 1.0 | 30 | 1.00 | 10 | 50 |
| UF4004 |
|
DO-204AL (DO-41) | 400 | 1.0 | 30 | 1.00 | 10 | 50 |
| UF4005 |
|
DO-204AL (DO-41) | 600 | 1.0 | 30 | 1.70 | 10 | 75 |
| UF4006 |
|
DO-204AL (DO-41) | 800 | 1.0 | 30 | 1.70 | 10 | 75 |
| UF4007 |
|
DO-204AL (DO-41) | 1000 | 1.0 | 30 | 1.70 | 10 | 75 |
| UF5400 |
|
DO-201AD | 50 | 3.0 | 150 | 1.00 | 10 | 50 |
| UF5401 |
|
DO-201AD | 100 | 3.0 | 150 | 1.00 | 10 | 50 |
| UF5402 |
|
DO-201AD | 200 | 3.0 | 150 | 1.00 | 10 | 50 |
| UF5403 |
|
DO-201AD | 300 | 3.0 | 150 | 1.00 | 10 | 50 |
| UF5404 |
|
DO-201AD | 400 | 3.0 | 150 | 1.30 | 10 | 50 |
| UF5405 |
|
DO-201AD | 500 | 3.0 | 150 | 1.70 | 10 | 75 |
| UF5406 |
|
DO-201AD | 600 | 3.0 | 150 | 1.70 | 10 | 75 |
| UF5407 |
|
DO-201AD | 800 | 3.0 | 150 | 1.70 | 10 | 75 |
| UF5408 |
|
DO-201AD | 1000 | 3.0 | 150 | 1.70 | 10 | 75 |
Part Number
from
to
Data
Sheet
Sheet
from
to
Package
from
to
VRRM
(V)
(V)
from
to
IF (AV)
(A)
(A)
from
to
IFSM
(A)
(A)
from
to
VF
(V)
(V)
from
to
IR
(uA)
(uA)
from
to
trr
(nS)
(nS)
from
to
GSGP2R608
Good-Ark Semiconductor introduces GSGP2R608, a 80V, 170A, N-Channel SGT MOSFET with industry’s lowest RDS(ON) of 2.2mΩ (typ.), Qgd=17nC @ID=50A, VGS=10V.
15KW-30KW Transient Voltage Suppressors (TVS)
Low Leakage, Fast Response Time, Excellent Clamping Capability in Industry Standard P600 Package
GSJA65R041
Good-Ark Semiconductor introduces GSJA65R041, a 650V, 70A, 37mΩ, N-Channel, low noise super junction MOSFET to meet the demand of noise-sensitive applications.
Free samples available for immediate testing
Call (+1) 631-319-1858 or email [email protected]
