Rectifiers

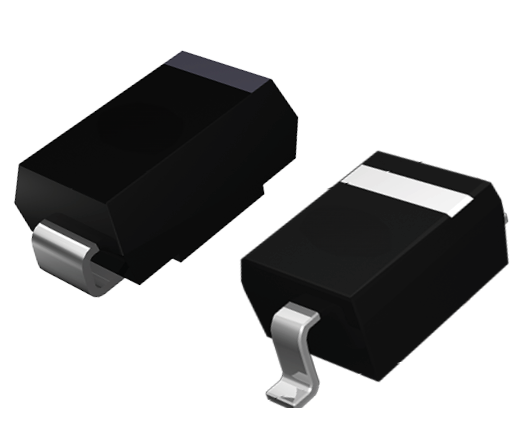

Fast Recovery Rectifiers
| Part Number |
Data Sheet |
Package |
VRRM (V) |
IF (AV) (A) |
IFSM (A) |
VF (V) |
IR (uA) |
trr (nS) |
|---|---|---|---|---|---|---|---|---|
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
Filter
|
||
Clear All Filters |
||||||||
| 1N4933G |
|
DO-204AL (DO-41) | 50 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4933SG |
|
A-405 | 50 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4934G |
|
DO-204AL (DO-41) | 100 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4934SG |
|
A-405 | 100 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4935G |
|
DO-204AL (DO-41) | 200 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4935SG |
|
A-405 | 200 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4936G |
|
DO-204AL (DO-41) | 400 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4936SG |
|
A-405 | 400 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4937G |
|
DO-204AL (DO-41) | 600 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4937SG |
|
A-405 | 600 | 1.0 | 30 | 1.20 | 5 | 200 |
| 1N4942G |
|
DO-204AL (DO-41) | 200 | 1.0 | 25 | 1.30 | 1 | 150 |
| 1N4944G |
|
DO-204AL (DO-41) | 400 | 1.0 | 25 | 1.30 | 1 | 150 |
| 1N4946G |
|
DO-204AL (DO-41) | 600 | 1.0 | 25 | 1.30 | 1 | 250 |
| 1N4947G |
|
DO-204AL (DO-41) | 800 | 1.0 | 25 | 1.30 | 1 | 250 |
| 1N4948G |
|
DO-204AL (DO-41) | 1000 | 1.0 | 25 | 1.30 | 1 | 500 |
| BY396 |
|
DO-201AD | 100 | 3.0 | 100 | 1.25 | 10 | 500 |
| BY397 |
|
DO-201AD | 200 | 3.0 | 100 | 1.25 | 10 | 500 |
| BY398 |
|
DO-201AD | 400 | 3.0 | 100 | 1.25 | 10 | 500 |
| BY399 |
|
DO-201AD | 800 | 3.0 | 100 | 1.25 | 10 | 500 |
| BY500-100 |
|
DO-201AD | 100 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-1000 |
|
DO-201AD | 1000 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-200 |
|
DO-201AD | 200 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-400 |
|
DO-201AD | 400 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-50 |
|
DO-201AD | 50 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-600 |
|
DO-201AD | 600 | 5.0 | 200 | 1.35 | 10 | 200 |
| BY500-800 |
|
DO-201AD | 800 | 5.0 | 200 | 1.35 | 10 | 200 |
| FF1 |
|
eSGA (SOD-123FL) | 50 | 1.0 | 30 | 1.30 | 5 | 150 |
| FF2 |
|
eSGA (SOD-123FL) | 100 | 1.0 | 30 | 1.30 | 5 | 150 |
| FF3 |
|
eSGA (SOD-123FL) | 200 | 1.0 | 30 | 1.30 | 5 | 150 |
| FF4 |
|
eSGA (SOD-123FL) | 400 | 1.0 | 30 | 1.30 | 5 | 150 |
| FF5 |
|
eSGA (SOD-123FL) | 600 | 1.0 | 30 | 1.30 | 5 | 250 |
| FF6 |
|
eSGA (SOD-123FL) | 800 | 1.0 | 30 | 1.30 | 5 | 500 |
| FF7 |
|
eSGA (SOD-123FL) | 1000 | 1.0 | 30 | 1.30 | 5 | 500 |
| GR1A |
|
DO-214AC (SMA) | 50 | 1.0 | 30 | 1.30 | 5 | 150 |
| GR1B |
|
DO-214AC (SMA) | 100 | 1.0 | 30 | 1.30 | 5 | 150 |
| GR1D |
|
DO-214AC (SMA) | 200 | 1.0 | 30 | 1.30 | 5 | 150 |
| GR1G |
|
DO-214AC (SMA) | 400 | 1.0 | 30 | 1.30 | 5 | 150 |
| GR1J |
|
DO-214AC (SMA) | 600 | 1.0 | 30 | 1.30 | 5 | 250 |
| GR1K |
|
DO-214AC (SMA) | 800 | 1.0 | 30 | 1.30 | 5 | 500 |
| GR1M |
|
DO-214AC (SMA) | 1000 | 1.0 | 30 | 1.30 | 5 | 500 |
| GR2A |
|
DO-214AA (SMB) | 50 | 2.0 | 50 | 1.35 | 5 | 150 |
| GR2B |
|
DO-214AA (SMB) | 100 | 2.0 | 50 | 1.35 | 5 | 150 |
| GR2D |
|
DO-214AA (SMB) | 200 | 2.0 | 50 | 1.35 | 5 | 150 |
| GR2G |
|
DO-214AA (SMB) | 400 | 2.0 | 50 | 1.35 | 5 | 150 |
| GR2J |
|
DO-214AA (SMB) | 600 | 2.0 | 50 | 1.35 | 5 | 250 |
| GR2K |
|
DO-214AA (SMB) | 800 | 2.0 | 50 | 1.35 | 5 | 500 |
| GR2M |
|
DO-214AA (SMB) | 1000 | 2.0 | 50 | 1.35 | 5 | 500 |
| GR3A |
|
DO-214AB (SMC) | 50 | 3.0 | 100 | 1.30 | 10 | 150 |
| GR3AB |
|
DO-214AA (SMB) | 50 | 3.0 | 100 | 1.30 | 5 | 150 |
| GR3B |
|
DO-214AB (SMC) | 100 | 3.0 | 100 | 1.30 | 10 | 150 |
| GR3BB |
|
DO-214AA (SMB) | 100 | 3.0 | 100 | 1.30 | 5 | 150 |
| GR3D |
|
DO-214AB (SMC) | 200 | 3.0 | 100 | 1.30 | 10 | 150 |
| GR3DB |
|
DO-214AA (SMB) | 200 | 3.0 | 100 | 1.30 | 5 | 150 |
| GR3G |
|
DO-214AB (SMC) | 400 | 3.0 | 100 | 1.30 | 10 | 150 |
| GR3GB |
|
DO-214AA (SMB) | 400 | 3.0 | 100 | 1.30 | 5 | 150 |
| GR3J |
|
DO-214AB (SMC) | 600 | 3.0 | 100 | 1.30 | 10 | 250 |
| GR3JB |
|
DO-214AA (SMB) | 600 | 3.0 | 100 | 1.30 | 5 | 250 |
| GR3K |
|
DO-214AB (SMC) | 800 | 3.0 | 100 | 1.30 | 10 | 500 |
| GR3KB |
|
DO-214AA (SMB) | 800 | 3.0 | 100 | 1.30 | 5 | 500 |
| GR3M |
|
DO-214AB (SMC) | 1000 | 3.0 | 100 | 1.30 | 10 | 500 |
| GR3MB |
|
DO-214AA (SMB) | 1000 | 3.0 | 100 | 1.30 | 5 | 500 |
| GROA |
|
DO-214AA (SMB) | 50 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROAA |
|
DO-214AC (SMA) | 50 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROB |
|
DO-214AA (SMB) | 100 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROBA |
|
DO-214AC (SMA) | 100 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROD |
|
DO-214AA (SMB) | 200 | 1.5 | 50 | 1.30 | 5 | 150 |
| GRODA |
|
DO-214AC (SMA) | 200 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROG |
|
DO-214AA (SMB) | 400 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROGA |
|
DO-214AC (SMA) | 400 | 1.5 | 50 | 1.30 | 5 | 150 |
| GROJ |
|
DO-214AA (SMB) | 600 | 1.5 | 50 | 1.30 | 5 | 250 |
| GROJA |
|
DO-214AC (SMA) | 600 | 1.5 | 50 | 1.30 | 5 | 250 |
| GROK |
|
DO-214AA (SMB) | 800 | 1.5 | 50 | 1.30 | 5 | 500 |
| GROKA |
|
DO-214AC (SMA) | 800 | 1.5 | 50 | 1.30 | 5 | 500 |
| GROM |
|
DO-214AA (SMB) | 1000 | 1.5 | 50 | 1.30 | 5 | 500 |
| GROMA |
|
DO-214AC (SMA) | 1000 | 1.5 | 50 | 1.30 | 5 | 500 |
| GSFR2500J |
|
DO-214AC (SMA) | 2500 | 0.5 | 30 | 2.50 | 5 | 500 |
| GSFR3000J |
|
DO-214AC (SMA) | 3000 | 0.5 | 30 | 2.50 | 3 | 500 |
| GSGP1R |
|
eSGP (SOD-323F) | 50 | 1.0 | 25 | 1.30 | 5 | 150 |
| GSGP2R |
|
eSGP (SOD-323F) | 100 | 1.0 | 25 | 1.30 | 5 | 150 |
| GSGP3R |
|
eSGP (SOD-323F) | 200 | 1.0 | 25 | 1.30 | 5 | 150 |
| GSGP4R |
|
eSGP (SOD-323F) | 400 | 1.0 | 25 | 1.30 | 5 | 150 |
| GSGP5R |
|
eSGP (SOD-323F) | 600 | 1.0 | 25 | 1.30 | 5 | 250 |
| GSGP6R |
|
eSGP (SOD-323F) | 800 | 1.0 | 25 | 1.30 | 5 | 500 |
| GSGP7R |
|
eSGP (SOD-323F) | 1000 | 1.0 | 25 | 1.30 | 5 | 500 |
| GSPF1 |
|
iSGA (SOD-123HS) | 50 | 1.0 | 30 | 1.30 | 5 | 150 |
| GSPF151 |
|
iSGA (SOD-123HS) | 50 | 1.5 | 52 | 1.30 | 5 | 150 |
| GSPF152 |
|
iSGA (SOD-123HS) | 100 | 1.5 | 52 | 1.30 | 5 | 150 |
| GSPF153 |
|
iSGA (SOD-123HS) | 200 | 1.5 | 52 | 1.30 | 5 | 150 |
| GSPF154 |
|
iSGA (SOD-123HS) | 400 | 1.5 | 52 | 1.30 | 5 | 150 |
| GSPF155 |
|
iSGA (SOD-123HS) | 600 | 1.5 | 52 | 1.30 | 5 | 150 |
| GSPF156 |
|
iSGA (SOD-123HS) | 800 | 1.5 | 52 | 1.30 | 5 | 250 |
| GSPF157 |
|
iSGA (SOD-123HS) | 1000 | 1.5 | 52 | 1.30 | 5 | 250 |
| GSPF2 |
|
iSGA (SOD-123HS) | 100 | 1.0 | 30 | 1.30 | 5 | 150 |
| GSPF27 |
|
iSGA (SOD-123HS) | 1000 | 2.0 | 60 | 1.30 | 1 | 250 |
| GSPF3 |
|
iSGA (SOD-123HS) | 200 | 1.0 | 30 | 1.30 | 5 | 150 |
| GSPF4 |
|
iSGA (SOD-123HS) | 400 | 1.0 | 30 | 1.30 | 5 | 150 |
| GSPF5 |
|
iSGA (SOD-123HS) | 600 | 1.0 | 30 | 1.30 | 5 | 250 |
| GSPF6 |
|
iSGA (SOD-123HS) | 800 | 1.0 | 30 | 1.30 | 5 | 250 |
| GSPF7 |
|
iSGA (SOD-123HS) | 1000 | 1.0 | 30 | 1.30 | 5 | 250 |
| L2F6 |
|
eSGB (SMAF) | 800 | 1.0 | 50 | 1.30 | 5 | 500 |
| L2F7 |
|
eSGB (SMAF) | 1000 | 1.0 | 50 | 1.30 | 5 | 500 |
| LF6 |
|
eSGB (SMAF) | 800 | 1.0 | 30 | 1.30 | 5 | 500 |
| LF7 |
|
eSGB (SMAF) | 1000 | 1.0 | 30 | 1.30 | 5 | 500 |
| R1200F |
|
DO-204AL (DO-41) | 1200 | 0.5 | 30 | 2.50 | 5 | 500 |
| R1500F |
|
DO-204AL (DO-41) | 1500 | 0.5 | 30 | 2.50 | 5 | 500 |
| R1800F |
|
DO-204AL (DO-41) | 1800 | 0.5 | 30 | 2.50 | 5 | 500 |
| R2000F |
|
DO-204AL (DO-41) | 2000 | 0.2 | 30 | 4.00 | 5 | 500 |
| R2500F |
|
DO-204AC (DO-15) | 2500 | 0.2 | 30 | 4.00 | 5 | 500 |
| R3000F |
|
DO-204AC (DO-15) | 3000 | 0.2 | 30 | 5.00 | 5 | 500 |
| R4000F |
|
DO-204AC (DO-15) | 4000 | 0.2 | 30 | 6.50 | 5 | 500 |
| R5000F |
|
DO-204AC (DO-15) | 5000 | 0.2 | 30 | 6.50 | 5 | 500 |
| RS1002FL |
|
eSGA (SOD-123FL) | 200 | 1.0 | 30 | 1.30 | 5 | 150 |
| RS1210FL |
|
eSGA (SOD-123FL) | 1000 | 1.2 | 50 | 1.30 | 5 | 250 |
| RS1510FL |
|
eSGA (SOD-123FL) | 1000 | 1.5 | 50 | 1.30 | 5 | 250 |
